Credit Bureau Interface

Contents

• Introduction

• Credit Bureau Options
  • Request Information
  • List of Similars

• Credit Report Query/Credit Report View

• Credit Report
  • Identifying Information
  • Credit History
  • Public Records
  • Trade Lines
  • Inquiries and Messages

• Stored Fields

• Product Descriptions

• Street Type Codes



Introduction

The Credit Bureau Interface is a bridge system between MicroBilt's credit report software and LeasePak. This interface transfers data between Microbilt and LeasePak databases via the Internet. All client information (vendor/source, lessee and guarantor) will reside centrally in LeasePak.

This module works in conjunction with the LeasePak Application Tracking [U0801] module and gives the user the ability to select client data (lessee, co-lessee, guarantor etc.) and transmit it securely to the Microbilt servers.

Data, including credit scores, from requested bureaus are pulled and stored on the MicroBilt servers for later retrieval and review. The bureaus reports and scores can be transferred to LeasePak, in real-time or left on the MicroBilt servers. LeasePak uses MicroBilt's Systems Integration Tool Kit to access selected bureau products from D&B, Experian Business, Experian Consumer, Equifax and Trans Union.

Note: Appropriate licenses with MicroBilt and credit bureaus are required. Additionally, a properly configured web browser and internet connection is required.

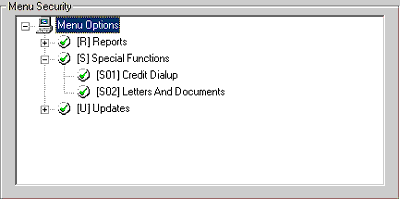

The Credit Bureau interface users security is established in the Security [U0706] update. The Credit Dialup option in Special Functions [S], allows the user to request and view credit reports associated with an application, when full security is granted. When Credit Dialup security is not granted; the user is limited to only requesting credit report(s) associated with the application. The user may not view the Credit Report Query and will not have access to the Credit Report View option in Applications [U0801] .



Credit Bureau Options

The Credit Bureau module displays two menu options, Credit Report Request and Credit Report View.

Once the application is entered and saved, the user may request a credit report; the user must first select an application using either the Single Application Selection or the Application Work Schedule. Requests from the following bureaus may be submitted:

DB Dun & Bradstreet
EB Experian for Business
EQ Equifax
EX Experian for Individual
TU Trans Union

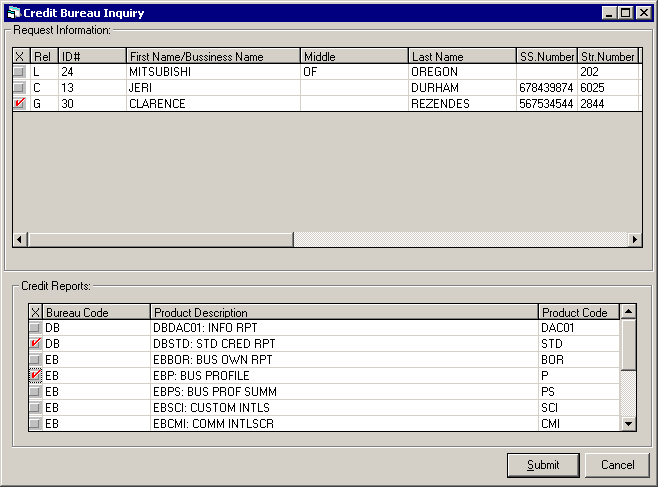

Credit Report Request



This screen is displayed when the Credit Bureau Request option is selected. All fields in the Request Information section are accessible and may be modified.

Request Information

• REL
  This column displays the relationship of the client; Lessor, Co-lessee, Guarantor and User Defined Client, associated with the application. Requests may be submitted for each associated client or for a specific client; when multiple clients exist by checking or deselecting the box.

  Note: In order to deselect a client, when multiple exist, the user must first double click the highlighted item in order to remove the 'highlight'; then click the selection box to remove the checked item.

• ID#
  The clients ID number is displayed and may be modified.

• FIRST NAME/BUISNESS NAME
  This first name or the business name of the client is displayed and may be modified. The business name is not required if the File Number number is entered.

  The clients name and/or business names will be partitioned based on spaces, commas and characters (36) of the long name entered in the address tabs of Lessee [U0203] , Guarantor [U0217] and User Defined Client [U0229] updates. The data partitioning allows for LeasePak data to be transmitted correctly to the Microbilt servers.

  Example

  Long Name (U0203, U0217, U0229)	Credit Bureau First Name/Business Name	Credit Bureau Middle Name	Credit Bureau Last Name	Partition Reason
  Mitsubishi of Southern Oregon	Mitsubishi	of	Oregon	Omits 'Southern'
  Tree Top, Incorporated		Incorporated	Tree Top	First Name is blank.
  General Electric Company	General	Electric	Company	Name is partitioned.
  Durham, Bob M.	Bob		Durham	Omits middle initial 'M'
  *Durham JR., Jeri		Jeri	Durham	'JR' is omitted (see Note).

  Note: The Credit Bureau Interface erroneously partitions clients names when the Last Name is entered first and is followed by a generation or title. In the example above, the First Name is placed in the Middle Name column. This behavior will be corrected in a future LeasePak release.

• MIDDLE
  The clients middle name is displayed and may be modified, if available.

• LAST NAME
  The clients last name is displayed and may be modified.

• SOCIAL SECURITY NUMBER
  The clients social security number is displayed and may be modified.

  Note: Currently, LeasePak does not support the Business ID number.

• STR NUMBER
  The clients street number is displayed and may be modified.

  The clients street address will be partitioned based on spaces, commas and characters of the address entered in the address tabs of Lessee [U0203] , Guarantor [U0217] and User Defined Client [U0229] updates. The data partitioning allows for LeasePak data to be transmitted correctly to the Microbilt servers.

• STREET NAME
  The address street name is displayed, up to 36 characters.

• ST TYPE
  The street type code is displayed. LeasePak defaults the street type code from the client record, supported codes are Alley, Avenue, Boulevard and Street. Additionaly Microbilt codes are listed in the Street Type Code section of this document.

• SUITE
  The suite or apartment number for the client is displayed, up to 6 characters.

• AD TYPE
  The address type code is displayed. Valid codes are:
  • S standard
  • P P.O. Box
  • R rural route

• CITY
  The city is displayed, up to 25 characters.

• STATE
  The state is displayed.

• ZIP
  The zip code is displayed.

  Note: If the zip code is not entered when Experian reports are selected, the List of Similars report will return all businesses for that state.

• FILE NUMBER
  Enter the nine digit file number(s) associated with the business.

  Note: Experian Business allows up to five file numbers to be entered, separated by a semi-colon (;). If Dun & Bradstreet, enter the D-U-N-S® file number associated with the business name.

• SEQUENCE #
  Enter the sequence number associated with the client, if available.

• TRANSACTION ID
  Enter the transaction ID number associated with the client, if available.

Note: All fields entered and/or modified must be validated by the user to ensure accuracy. LeasePak does not perform any validations for the data entered and submitted to the Credit Bureaus.

Credit Reports

This portion of the screen displays each bureau's available product codes and descriptions. The following bureau codes apply:

• DB Dun & Bradstreet
• EB Experian for Business
• EQ Equifax
• EX Experian for Individual
• TU Trans Union

• BUREAU CODE
  The bureau code is displayed. Select the desired bureau reports to be submitted by selecting the associated report code(s).

• PRODUCT DESCRIPTION
  The product description is displayed.

• PRODUCT CODE
  The product code is displayed for the associated reports.

• SUBMIT
  Select the submit button to begin credit request or select cancel. The following message is displayed:



  This screen notifies the user that the credit request has been submitted. When requesting a personal credit report, the list of similars will not be displayed. Click OK.

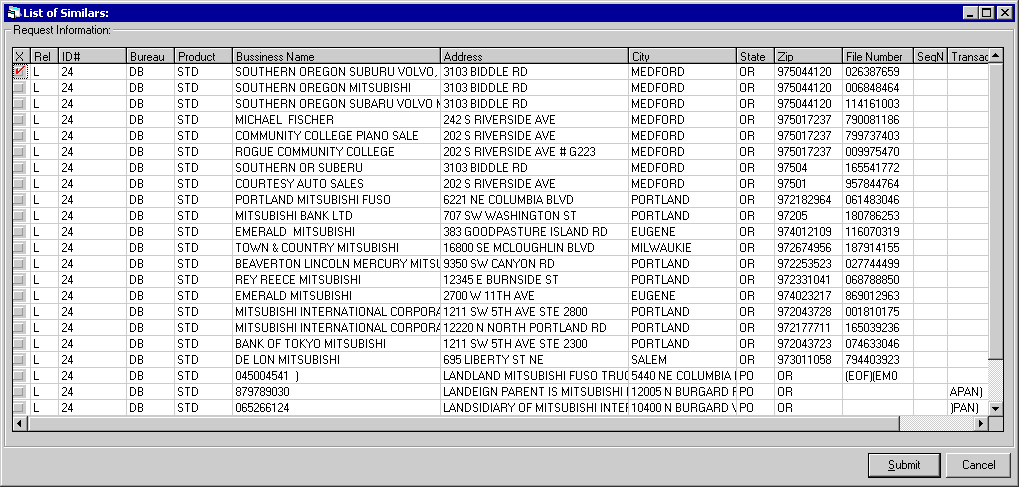

List of Similars

The List of Similars (LOS) report is submitted and transferred first, displaying any/all similars in the bureau's database that match the name and information submitted. The List of Similars report displays the data based on the information entered in the Report Request screen; the report may be requested based on limited information and dependent on the bureau reports selected.

• Dun & Bradstreet will return a list of similars when only the Business Name and State fields are populated. If the D-U-N-S® file number, associated with the business name, is entered in the FILE NUMBER field, the report will be skipped and the credit report will be transmitted.

• Experian Business requires the Transaction ID, File Number and Sequence Number, in order to process the credit request. Therefore, requiring the List of Similars report to be requested prior to transferring the credit report.

  Once the List of Similars report is displayed and the desired selection is made and submitted, Experian Business transmits the credit report. If the file number is known and entered in the FILE NUMBER field, the report will be skipped and the credit report will be transmitted.



• 'X'
  Select the desired name by clicking on the selection box.

• REL
  This column displays the relationship of the client; Lessor, Co-lessee, Guarantor and User Defined Client, associated with the application.

• ID#
  The clients ID number is displayed.

• BUREAU
  The bureau code is displayed.
  • DB Dun & Bradstreet
  • EB Experian for Business
  • EQ Equifax
  • EX Experian for Individual
  • TU Trans Union

• NAME (BUSINESS)
  The name/business name is displayed.

• ADDRESS
  The street address is displayed.

• CITY
  The city name is displayed.

• STATE
  The state is displayed.

• ZIP
  The zip code is displayed.

• FILE #
  The associated file number is displayed.

• SEQ #
  The associated sequence number, if available is displayed.

• TRANS #
  The associated transaction number, if available is displayed.

• SUBMIT
  Select the submit button to transmit the the data selected; or select cancel to terminate the request. The following message is displayed:



  This screen notifies the user that the credit request has been submitted for the data selected. Click OK.

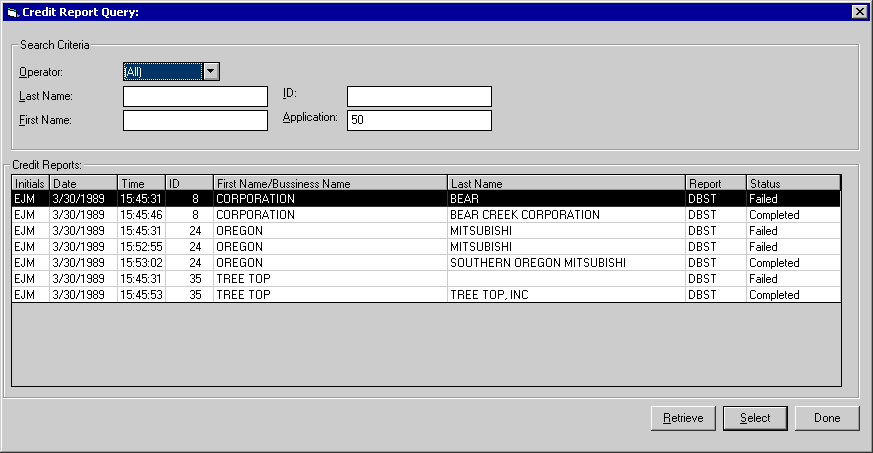

Credit Report Query/Credit Report View

The Credit Report Query screen is displayed once requests have been transmitted and stored in LeasePak. The query displays the requested reports for the selected application; the user must first select the clients application using either the Single Application Selection or the Application Work Schedule.

To view all stored credit reports, the user may select the Credit Bureau View option from the Application menu.

Access to this screen is based on the users Security [U0706] settings.

• If requests are submitted, and the users security settings allow access to request and view reports, the query will be displayed immediately after the request has been submitted. Additionally, the Credit Report Query may be accessed via the Credit Report View option from the Credit Bureau menu in Applications [U0801].

• If requests are submitted, and the user does not have view access, LeasePak will display a message notifying the user that access is not granted.



This screen displays all requested reports for the selected application. Additionally, the user may perform a search when multiple reports and/or clients are listed.

Search Criteria

• OPERATOR
  Enter the operators name to search and display only those reports requested/submitted by the operator. Use the down Help menu for a list of valid users.

• LAST NAME
  Enter the clients last name to search and display only those reports associated with the last name entered.

• FIRST NAME
  Enter the clients first name to search and display only those reports associated with the first name entered.

• ID#
  Enter the clients ID number to search and display only those reports associated with the ID number entered.

• APPLICATION #
  Enter the application number to search and display only those reports associated with the application number entered.


Credit Reports

• INITIALS
  This column displays the initials of the operator who performed the credit request.


• DATE
  This column displays the date the credit report was requested.


• TIME
  This column displays the time the credit report was requested.


• ID#
  This column displays the clients ID number.


• FIRST NAME/BUSINESS NAME
  This column displays the first name of the client or business associated with the credit report.


• LAST NAME
  This column displays the last name of the client or business (partitioned) associated with the credit report.


• REPORT
  This column displays the credit report product code.

• STATUS
  This column displays the status of the credit report.

  • Completed - Credit bureau successfully transmitted data.

  • Failed - Credit bureau data not ready, not received by Microbilt/server is down.


• RETRIEVE
  Use this option when performing a search. LeasePak performs the appropriate edits and sorts the data according to the criteria entered.

• SELECT
  Use this button to open (select) the credit report to be viewed. Double clicking on the highlighted credit report item, opens the credit report.




Credit Report

The credit report(s) will be displayed in a properly configured web browser. The browser will display the credit reports for all requests based on the information entered in LeasePak and based on Microbilt's required fields.

Below is a sample credit bureau report requested and transmitted between LeasePak, Microbilt and the Credit Bureau's. For more detailed information and field descriptions, please refer to Microbilt's Setup Toolkit manuals.

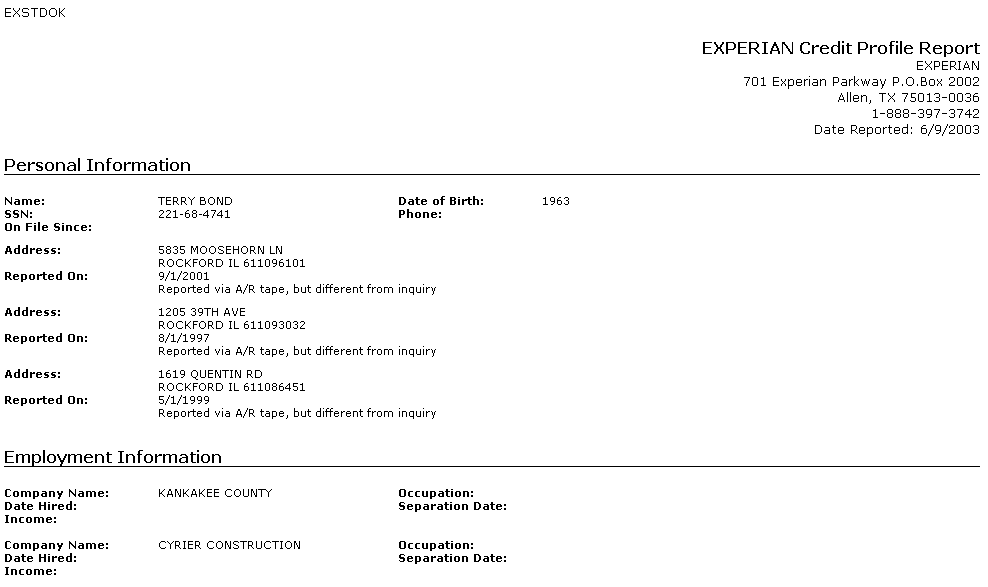

Identifying Information

---

Basic identifying information is displayed.

• Name
• Phone Number
• Address
• Previous Addresses
• Social Security #
• Date of Birth
• Employment Information

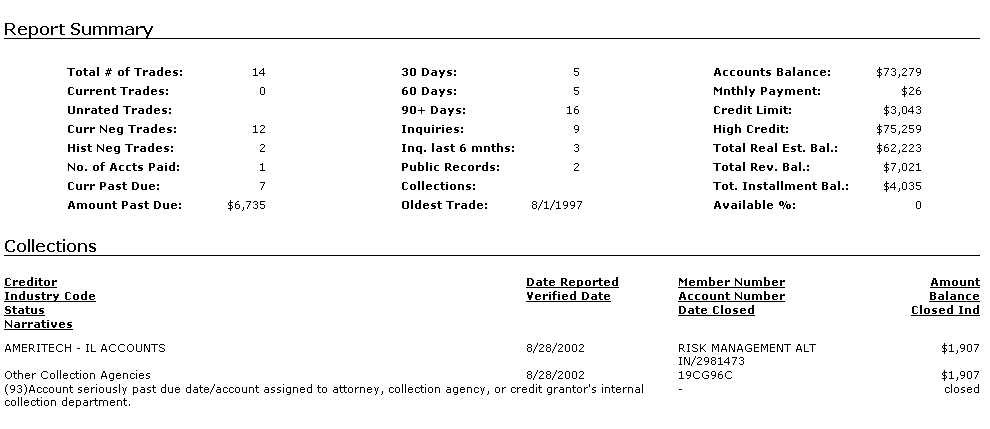

Credit History

---

The clients credit transaction summary and collections are displayed.

• Payment History
• Total Late Payments
• Total Number of Accounts
• Credit Limits High/Low
• Revolving Credit Balances
• Collection Agencies
• Creditor (Name)
• Descriptions
• Status
• Collection Amounts
• Dates

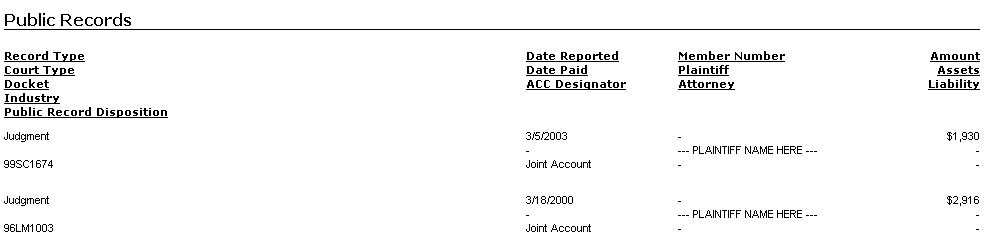

Public Records

---

The clients federal, state and/or local public records are displayed.

• Liens
• Bankruptcy Filings
• Judgments
• Dates
• Amounts
• Names
• Detailed Narratives

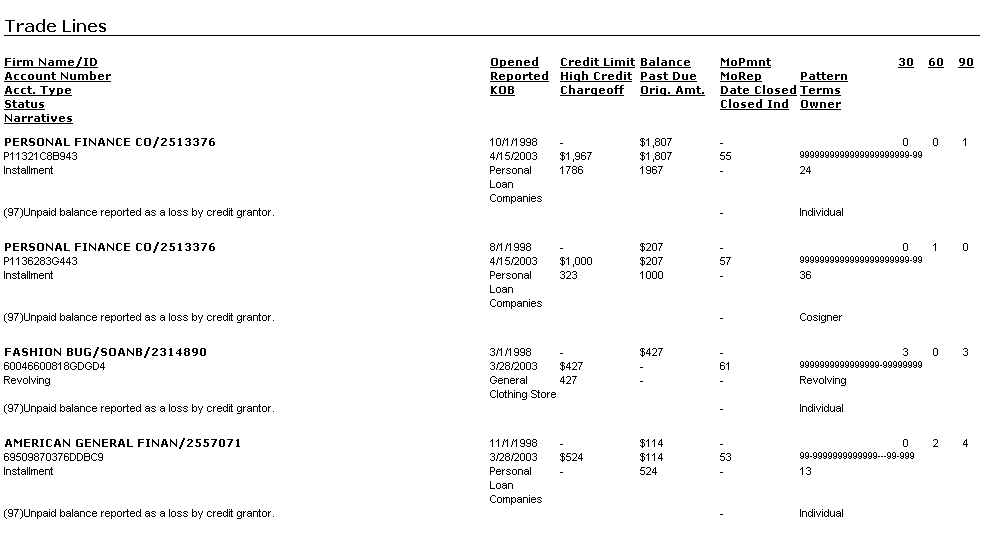

Trade Lines

---

The clients detailed trade line information is displayed.

• Creditor Names
• Account Numbers
• Credit Limits
• Dates opened/ last used
• Repayment Terms
• Amounts Owed
• Payment Status (current/arrears)
• Months Past Due
• Status
• Detailed Narratives

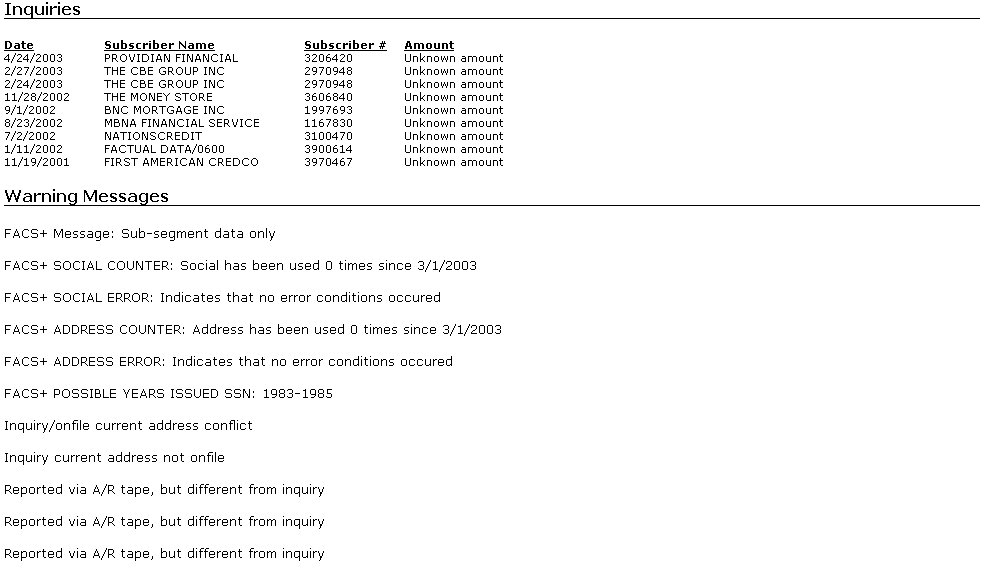

Inquiries and Messages



---

The clients credit inquires and bureau messages are displayed.

• Inquiry Date
• Subscriber Name/Number
• Amount Requested
• Related Bureau Messages



Stored Fields

The data transmitted between the servers and the credit bureau's, is validated against Microbilt's required fields. The data is stored in the RKR-Credit Report table in LeasePak's database. Below is the Credit Report (RKR) table. For a more detailed field description of the RKR table, please refer to LeasePak's Relational Database Table layout.

Fields and Parameters

Client
Credit Bureau Code
Request Date
Request Time
Client Type (L/C/G/U)	Lessee, Co-Lessee, Guarantor, User-defined Client
Application
Operator's Initials
SS/Bus ID
Last Name
First Name
Middle Name
Generation or Title	JR,SR,I,II, III,IV,V
Address Type Code (S/P/R)	Standard, P.O. Box, Rural Route
Street, House, P.O. Box or Rural Route Number
Street Name
Street Type Code
Street Directional	N, W, S, E, NW, SW, SE, NE
Suite
City
State
Zip Code
Report Status (C/F)	Completed, Failed
Credit Score
End Time
Report File Name
Transaction ID
File Number
Sequence Number
Globally Unique Identifier

Product Descriptions

Currently, LeasePak supports the following bureau products:

Bureau Code		Product Description	Product Code
Dun & Bradstreet	DB	Business Information Report – Identification and Summary Section	DAC01
	DB	Standard Credit Profile	STD
Experian	EB	Business Owner Profile Report	BOR
	EB	Business Profile Report	P
	EB	Business Profile Summary	PS
	EB	Custom Intelliscore	SCI
	EB	Commercial Intelliscore Report	CMI
	EB	International Profile Report	IPR
	EB	Industry Trade Profile Report	ITP
	EB	Small Business Intelliscrore	SBI
Equifax	EQ	Standard Credit Report	STD
Experian for Individual	EX	Standard Credit Profile	STD
Trans Union	TU	Standard Credit Profile	STD



Street Type Codes

The abbreviation and description of Microbilts street type codes are listed in the following table. LeasePak defaults the address from the clients record and supports Alley, Avenue, Boulevard and Street.



Abbreviation (2)	Description	Abbreviation (2)	Description
AL	Alley	PK	Park
AV	Avenue	PY	Parkway
BV	Boulevard	PA	Path
BD	Building	PI	Pike
CN	Center	PL	Place
CI	Circle	PZ	Plaza
CT	Court	PT	Point
CS	Crescent	RD	Road
DA	Dale	RT	Route
DR	Drive	RO	Row
EX	Expressway	RN	Run
FY	Freeway	RR	Rural Route
GA	Garden	SQ	Square
GR	Grove	ST	Street
HT	Heights	TC	Terrace
HY	Highway	TY	Thruway
HI	Hill	TR	Trail
KN	Knoll	TP	Turnpike
LN	Lane	VI	Viaduct
LP	Loop	VW	View
MA	Mall	WK	Walk
OV	Oval	WY	Way
