Import Pricing Tool Interface

The section Mapped Fields contains references to information from the various Application documents. For more information, refer to the document Application Tracking [U0801].



Introduction

The Import Pricing Tool Interface allows users to extract appropriate information from pricing tool applications such as, Ivory Consulting’s SuperTrump™ Pricing Tool software and XML documents. The module then transfer the data from SuperTrump™ and/or an XML document to LeasePak's database; importing the data without the need to re-type the information over again.

This module is integrated into LeasePak's Application Tracking module and allows the ability to locate a SuperTrump™ pricing run (parameter file), or an XML document on the users PC or network share. All applicable fields from the pricing run will be stored into the current LeasePak application. The Pricing Tool Interface will use Microsoft® XML parser to process SuperTrump™ XML documents.

Note: This module supports SuperTrump™ desktop version (8.0 or later) with XML capability and/or the SuperTrump™ COM server version (StServer.dll). The COM Server allows the user to bypass the batch process when generating the XML file by directly importing from Super Trump’s parameter file “xxxxxx.prm”.

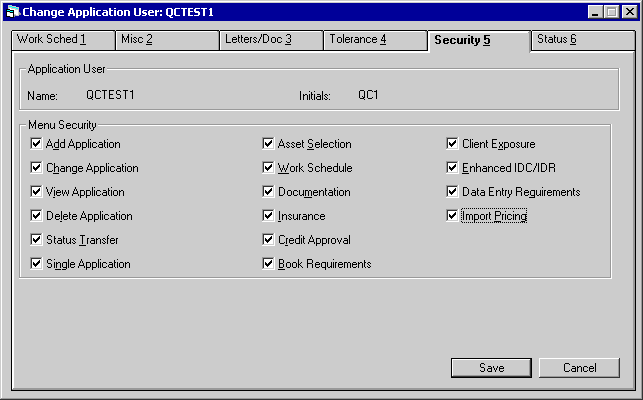

In order for the user to obtain access to this module, security access must be established in Application User Profile [U0831], Security tab 5.

The Import Pricing Tool allows the user to choose between two menu options in the Application [U0801] module, SuperTrump and Other. In order to correctly initiate the Import Pricing option, the user must setup and perform several key steps. Please refer to the SuperTrump Pricing Tool documentation for more detailed information.

Once the batch process is complete and the "Success Parsing XML File" message is displayed, the user can now import the data into LeasePak.



Import Pricing

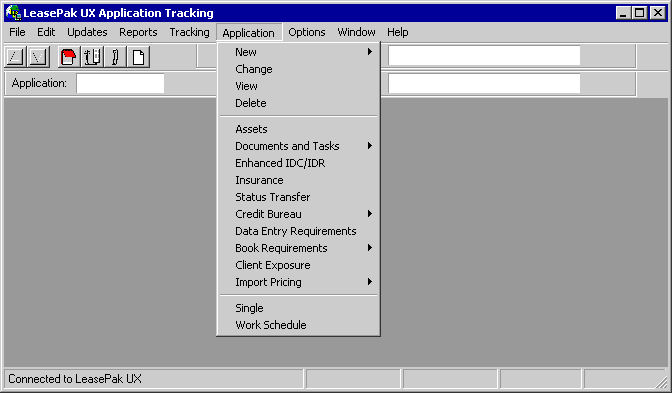

From the Import Pricing option in the Applications Tracking module, the user may select SuperTrump or Other from the menu.

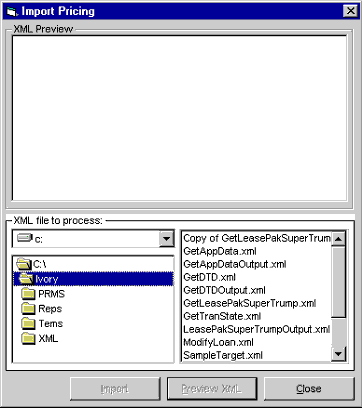

This screen is displayed when the Import Pricing option is selected. Allowing the user to select a specific XML export file (GetLeasePakSuperTrump.xml or TransactionDump.xml) for the pricing quote. If the COM Server is used, select the PRN parameter file from the PRMS directory.

Select the desired directory and XML file to be exported. Once the file has been selected, LeasePak will display the following screen.

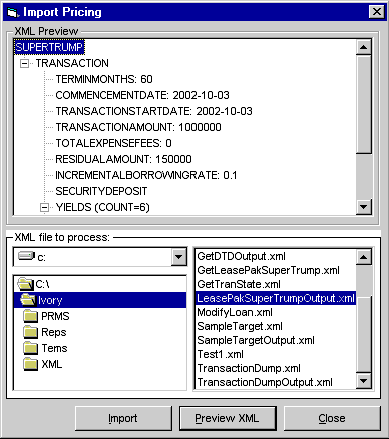

Once the user has selected the desired file, the user may Import, Preview XML or Close (terminates the import process).

LeasePak parses the XML object file and imports the pricing tool field values into the appropriate LeasePak application fields. The mapped fields values for application and asset fields are listed below. Please refer to the Application [U0801] tabs and the Application Asset [U0801] tabs for detailed information.

LeasePak will perform a basic edit check in order to save the application. Once the application has been saved, an asset may be added and associated with the application entered.

Note: Skip payments are not supported. Skip payments entries must be entered as a zero amount payment.



Accounting Notes

For IBL's or simple interest loans, LeasePak will calculate the interest based 30/360 days, when the 'Use 365 Days Calculation' field, in SuperTrumps™ Pricing Tool software, is set to 'No'. LeasePak will default the Actual Days in the <YearApplied> field.

Note: Currently, SuperTrump™ (3/31/2003 release) does not support the <YearCalculated> field in the XML files.

LeasePak will use the Actual Days over 360 when

Note: The Actual days of the years (xxx6) are not supported.

In order to determine whether a loan is Simple Interest or Interest Bearing Loan, the True/False value in the <DisableCompounding> field will be used to determine the loan type.

Fixed or Floating rates are determined by the <RateLocked> field.



OPER Accrual Types

Rental Revenue Recognition is based on whole lease term/individual rental payments;these fields are not populated in the XML data file. Therefore, LeasePak will use the fee parameter <OperatingAccountingMethod> field to determine the rental revenue.

Note: For values other than Rental Revenue, the default accrual method is xOSL.

When the Use loan type screen is checked, the <UseFundingsAndRate> field will default to True, using the xOVE accrual method. If the Use loan type is not selected, the xOPM accrual method will be used.





Mapped Fields

LeasePak parses the XML object and translates the appropriate values from the pricing tool into LeasePak application.

Application Fields

Terms/Rates (Application Tab 3)

LeasePak Field Name
SuperTrump Field Name
Term TermInMonth
Payment Due Day CommencementDate (Day field)
Contract Date CommencementDate
Commencement Date CommencementDate
Disbursement Date TransactionStartDate

Financial (Application Tab 4)

LeasePak Field Name
SuperTrump Field Name
Acquisition Cost TransactionAmount
Other Charges TotalExpenseFee
Residual Amount ResidualAmount
NPV Discount Rate IncrementalBorrowingRate
Cost of Funds Rate LendingRate

Miscellaneous Fees (Application Tab 6)

LeasePak Field Name
SuperTrump Field Name
Security Deposit SecurityDeposits

Payment Schedule (Application Tab 8)

LeasePak Field Name
SuperTrump Field Name
Payment Schedule CashFlowSteps
Payment Frequency Periodicity

MON

Monthly

QTR

Quarterly

SEMI

Semiannual

ANNL

Annual

ADVM

Monthly & IsAdvance

ADVQ

Quarterly & IsAdvance

ADVS

Semiannual & IsAdvance

ADVA

Annual & IsAdvance

SKIP

Amount (0)
Number of Payments NumberOfPayments
Payment Amount Amount

Accrual Information (Application Tab 9)

LeasePak Field Name
SuperTrump Field Name
Lessor Accrual Method LessorAccountingMethod
Contract Type LessorAccountingMethod
xAPR/FIN -Capital: default (DFL)
xAPR/ FIN Capital: single investor (DFL)
xLVR/LEVL Capital:leveraged
xOSL/OPR (default) Operating lease
xOPM/OPR

Operating lease
 OperatingAccountingMethod (Rental revenue)
xOVE/OPR Operating lease
OperatingAccountingMethod
(Rental revenue)
UseFundingsAndRate (true)

xPX5/FIN

 Capital: loan
DisableCompounding (true)
StepwiseEOMTreatment(true)
YearCalculated (365)
RateLocked(true)
xPX0/FIN Capital: loan
DisableCompounding (true)
RateLocked(true)
StepwiseEOMTreatment(not exist)
XLT5/FIN Capital: loan
DisableCompounding (true)
StepwiseEOMTreatment(true)
YearCalculated (365)
Floating rate
Type (Payment)/AmountLocked (true)
xLT0/FIN Capital: loan
DisableCompounding (true)
Floating rate
Type (Payment)/AmountLocked (true)
xVT5/FIN Capital: loan
DisableCompounding (true)
YearApplied (Actual)/YearCalculated (365)
Floating rate
Type (Payment)/AmountLocked (false)
xVT0/FIN

Capital: loan
DisableCompounding (true)
Floating rate
Type (Payment)/AmountLocked (false)
xVL5/FIN Capital: loan
DisableCompounding (true)
YearApplied (Actual)/YearCalculated (365)
Floating rate
Type (Principal) only
xVL6/FIN Capital: loan
DisableCompounding (true)
YearApplied(Actual)/YearCalculated(Actual)
Floating rate
Type (Principal) only
xVL0/FIN Capital: loan
DisableCompounding (true)
Floating rate
Type (Principal) only
xVV0/FIN Capital: loan
DisableCompounding (true)
YearApplied (Actual)/YearCalculated (360)
Floating rate
Type (Principal/Payment) mixed
xVV5/FIN Capital: loan
DisableCompounding (true)
YearApplied (Actual)/YearCalculated (365)
Floating rate
Type (Principa/Payment) mixed
xVV6/FIN Capital: loan
DisableCompounding (true)
YearApplied(Actual)/YearCalculated(Actual)
Floating rate
Type (Principal/Payment) mixed
xVVE/FIN Capital: loan
DisableCompounding (false)
Floating rate
Type (Principal/Payment) mixed
xIX0/FIN Capital: loan
DisableCompounding (false)
YearApplied (Actual)/YearCalculated (360)
One rate/RateLocked(true)
Type (Principal)
xIX5/FIN Capital: loan
DisableCompounding (false)
YearApplied (Actual)/YearCalculated (365)
One rate/RateLocked(true)
Type (Principal) mixed
xIX6/FIN Capital: loan
DisableCompounding (false)
YearApplied(Actual)/YearCalculated(Actual)
One rate/RateLocked(true)
Type (Principal) mixed
xIXE/FIN Capital: loan
DisableCompounding (false)
One rate/RateLocked(true)
Type (Principal) mixed
xAX0/FIN Capital: loan
DisableCompounding (false)
YearApplied (Actual)/YearCalculated (360)
One rate/RateLocked(true)
Type (Payment)
xAX5/FIN Capital: loan
DisableCompounding (false)
YearApplied (Actual)/YearCalculated (365)
One rate/RateLocked(true)
Type (Payment) mixed
xAX6/FIN Capital: loan
DisableCompounding (false)
YearApplied(Actual)/YearCalculated(Actual)
One rate/RateLocked(true)
Type (Payment) mixed
xAXE/FIN Capital: loan
DisableCompounding (false)
One rate/RateLocked(true)
Type (Payment) mixed
xIF0/FIN Capital: loan
DisableCompounding (false)
YearApplied (Actual)/YearCalculated (360)
Floating rate
Type (Principal)
xIF5/FIN Capital: loan
DisableCompounding (false)
YearApplied (Actual)/YearCalculated (365)
Floating rate
Type (Principal) mixed
xIF6/FIN Capital: loan
DisableCompounding (false)
YearApplied(Actual)/YearCalculated(Actual)
Floating rate
Type (Principal) mixed
xIFE/FIN Capital: loan
DisableCompounding (false)
Floating rate
Type (Principal) mixed
xAF0/FIN Capital: loan
DisableCompounding (false)
YearApplied (Actual)/YearCalculated (360)
Floating rate
Type (Payment)
xAF5/FIN Capital: loan
DisableCompounding (false)
YearApplied (Actual)/YearCalculated (365)
Floating rate
Type (Payment)
xAF6/FIN Capital: loan
DisableCompounding (false)
YearApplied(Actual)/YearCalculated(Actual)
Floating rate
Type (Payment)
xAFE/FIN Capital: loan
DisableCompounding (false)
Floating rate
Type (Payment)
Unchanged,no input Others
x:Advance/Arrears PaymentTiming(Advance/Arrear)



Asset Fields

General (Application Asset Tab 1)

LeasePak Field Name
SuperTrump Field Name
Description Description
Acquisition Cost Cost
Residual Amount Residual
Original Asset Cost Cost
Other Charges CapitalFee

Additional (Application Asset Tab 2)

LeasePak Field Name
SuperTrump Field Name
Identification Description
Acquisition Date DeliveryDate
Purchase Order Date FundingDate
In-Service Date InServiceDate

Depreciation/Title File (Application Asset Tab 6 - Depreciation")

LeasePak Field Name
SuperTrump Field Name
Salvage StateDepreciation/Salvage
Book Accounting LessorAccountingMethod

FIN

Capital:default (DFL)

FIN

Capital:single investor (DFL)

FIN

Capital:leveraged

OPER

Operating lease

FIN

Others
Book Depreciation Date BookDepreciation/StartDate
Book Salvage Value BookDepreciation/Salvage
Mfr's Depreciation Basis Cost*Book's PercentDepreciable
Book Depreciation Basis Cost*Book's PercentDepreicable
Tax Depreciation Basis Cost*FED's PercentDepreciable



Book Depreciation Methods

Federal/State/ AMT
Book Depreciation Methods
CR03 CR05
CR10 CR15

ACRS 3 yr ACRS 5 yr
ACRS 10 yr ACRS 15 yr
BY03 BY05
BY07 BY10
BY15 BY20		 None (& Term)
D203 D205
D207 D210
DB 150 (& Term)
ADRConvention (Facts & circ)
D203 D205
D207 D210
 DB 175 (& Term)
ADRConvention (Facts & circ)
D403 D405
D207 D210
DB 200 (& Term)
ADRConvention (Facts & circ)
MHxx
xx term in years		 MACRS
Term (round to nearest year)
ADRConvention (Half-year)
M1xx M2xx
M3xx M4xx
xx term in years		 MACRS
Term (round to nearest year)
ADRConvention (Half-quarter)
StartDate (for which quarter)

STxx
xx term in years

 Str line, fixed; Str line, to end
Term (round to nearest year)
ADRConvention (Facts & circ)
SHxx
xx term in years
Str line, fixed; Str line, to end
Term (round to nearest year)
ADRConvention (Half-year)
SD03 SD05
SD07 SD10		 SYD (& Term)
ADRConvention (Facts & circ)


NOTE: If the depreciation term is not defined, or if the term is equal to zero, the Lease Term will be used.



XML Data Files

The XML data file examples display the tags created for fields values, the style sheet, template used and the data field values. Additionally, the data file tree view allows the user to preview the generated data file in XML format with an expandable/collapsible tree view.
