XSLT Customizations: Lease Summary

Provides instructions on customizing the XML-based Lease Summary screen using XSL style sheets.

This document assumes you have a working knowledge of CSS, HTML, JavaScript, XML, and XSLT. Contact your NetSol representative for more information.



LeasePak Setup

report_path_fn.xsl

The file report_path_fn.xsl contains the template fn_get_rpt_path, which specifies the path to the XSL style sheet directory. This file is not installed with the LeasePak client software. Instead, LeasePak creates it using the following process:

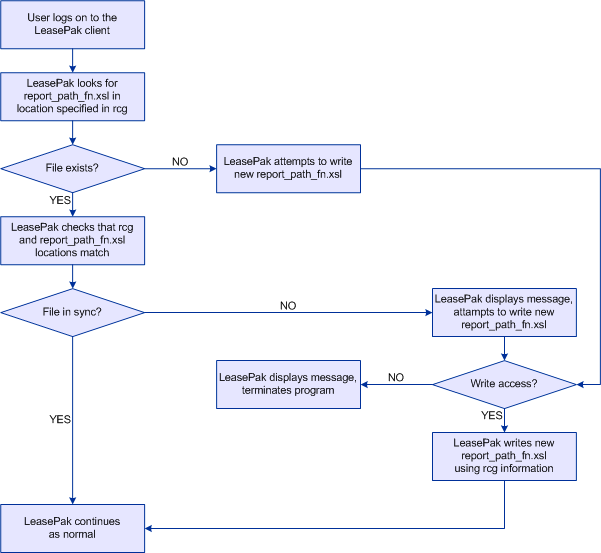

Each time a user logs on to the LeasePak client, LeasePak verifies that the report_path_fn.xsl file exists and that the location it specifies matches the location established through the Custom General setup. If you are customizing the XSL style sheet location, NetSol recommends allowing all users write access to that location until you have determined and configured your XSL style sheet location. Once your setup is complete, you can restrict write access to the XSL style sheet location.

By default, the location of the XSL style sheets, and therefore the location specified in report_path_fn.xsl, is install_path\Report Templates, where install_path is the installed location of the LeasePak client software on each user's computer. The following sections describe situations in which you may need to change the XSL style sheet location. If you need to do this, you will also need to specify the new location using Custom General [U0712] (refer to XSL Style Sheet Location Customization for instructions).



Setup without Customizations

To use the stored procedures and style sheets that LeasePak provides--without customizations--the administrative user (such as lpadmin) or LeasePak client software installer must:

• Provide each user who will need access to the XML-based Lease Summary with read access to the location of the XSL style sheets, and, within that location, an appropriately configured copy of the style sheet report_path_fn.xsl
• Provide users needing access to the XML-based Lease Summary with a "start point" XSL style sheet.

The administrative user can change the XSL style sheet location using Custom General [U0712]: Miscellaneous Customizations. See XSL Style Sheet Location Customization for instructions.

You must also provide users needing access to the XML-based Lease Summary with a start point XSL style sheet. This is the style sheet LeasePak uses to perform the initial data retrieval and transformation when the user selects a lease and clicks Retrieve. Refer to the section Lease Summary "Start Point" Customization for instructions.



Setup with Customizations

If you are customizing any of the style sheets or scripts LeasePak provides or creating your own, do not use the default install_path\Report Templates location, otherwise future LeasePak client installations may overwrite your customizations. Instead, NetSol recommends one of the following options based on your business needs:

Centralized Location

Place the contents (style sheet files, as well as css, html, images, scripts, and xml subdirectories and files) in one central location, such as a directory under a shared network drive. This solution works well for the following conditions:

• All users access the same Lease Summary style sheets or different users access different style sheets, since you can specify each user's "start point" Lease Summary style sheet.
• All users access the same set of LeasePak report style sheets.

Parallel Locations

Place different sets of contents in two or more different locations that all users map as the same location. For example, a set of style sheets, etc. with French text resides on \\français\data, while a set of style sheets with English text resides on \\english\data. Some users map drive M: to point to \\français, while others map the same drive M: to point to \\english. You configure the XSL style sheet location as M:\data\ in Custom General. This solution works well for the following conditions:

• All users access the same Lease Summary style sheets or different users access different style sheets.
• Different users access different sets of LeasePak report style sheets.

The administrative user can change the designated XSL style sheet location using Custom General [U0712]: Miscellaneous Customizations. See XSL Style Sheet Location Customization for instructions.

You must also provide users needing access to the XML-based Lease Summary with a start point XSL style sheet. This is the style sheet LeasePak uses to perform the initial data retrieval and transformation when the user selects a lease and clicks Retrieve. Refer to the section Lease Summary "Start Point" Customization for instructions.



XSL Style Sheet Location Customization

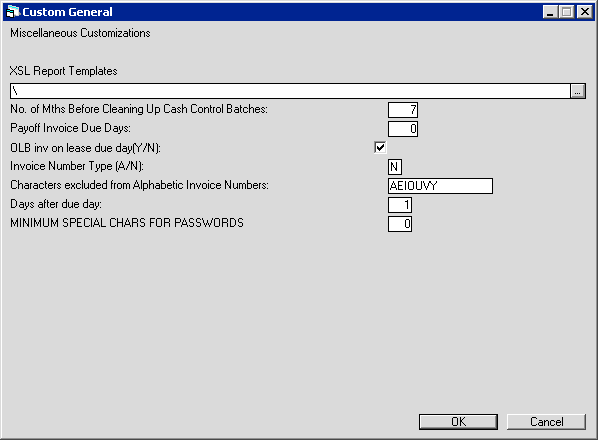

Use Custom General [U0712]: Miscellaneous Customizations to customize the XSL style sheet location.

XSL Report Templates

Type the full Windows path (including driver letter, if any) or click to select a directory. Set to '\' (backslash, as shown above) or leave blank to use the default location, install_path\Report Templates, where install_path is the installed location of the LeasePak client software on each user's computer. This field specifies the location of all XSL style sheets, not only those for LeasePak reports, but also those for LaunchPad and Lease Summary.

You must exit LeasePak and log back on to finish setting this parameter.

When you log back on, LeasePak creates the report_path_fn.xsl style sheet in the specified location. This XSL style sheet is always included in other XSL style sheets, providing them with the path to needed scripts, CSS style sheets, and more.

Do not attempt to modify report_path_fn.xsl directly. Each time you log in, LeasePak checks the file against the value from Custom General, displays an error message if they do not match, and overwrites report_path_fn.xsl with the value set in LeasePak.



Lease Summary "Start Point" Customization

Users needing access the XML-based Lease Summary must have read access to the XSL style sheet location.

The XML-based Lease Summary is available for use with the following:

• Lease Summary F5
• Collection Tracking [U11]
• Maturing Lease Tracking [U14]
• Customer Service Tracking [U16]
• Recovery Tracking [U17]

Each user accessing the XML-based Lease Summary must have a "start point" XSL style sheet--that is, the style sheet LeasePak uses for the initial data retrieval and transformation when the user clicks Retrieve. You can find the field for specifying this in one of the following locations:

Lease Summary F5	Security [U0706], XSL Files/Dlr. Alerts Tab
Collection Tracking [U11]	Collection Setup: User Profile [U1131], Signature Tab
Maturing Lease Tracking [U14]	Maturing Lease Setup: User Profile [U1431], Signature Tab
Customer Service Tracking [U16]	Customer Service Setup: User Profile [U1631], Signature Tab
Recovery Tracking [U17]	Recovery Setup: User Profile [U1731], Signature Tab

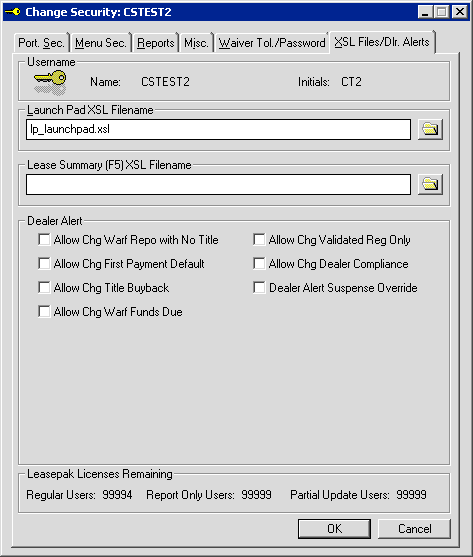

Security Update

Lease Summary (F5) XSL Filename

Type the name of the XSL style sheet (with the .xsl extension) or use to select a file from the XSL style sheet location. For example:

lsesum_lease.xsl

Do not include the path with the file name. This is the style sheet LeasePak uses for the initial data retrieval and transformation when the user selects a lease and clicks Retrieve.

To specify the path of this and other XSL style sheets, use the field XSL Report Templates in Custom General [U0712]: Miscellaneous Customizations.

User Profile Updates

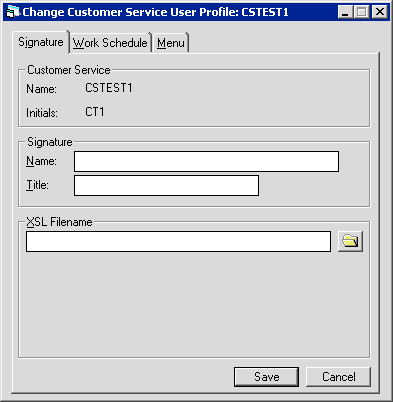

The following example is from Customer Service Setup: User Profile [U1631]:

XSL Filename

Type the name of the XSL style sheet (with the .xsl extension) or use to select a file from the XSL style sheet location. For example:

lsesum_lease.xsl

Do not include the path with the file name. This is the style sheet LeasePak uses for the initial data retrieval and transformation when the user selects a lease and clicks Retrieve.

To specify the path of this and other XSL style sheets, use the field XSL Report Templates in Custom General [U0712]: Miscellaneous Customizations.





Lease Summary Overview

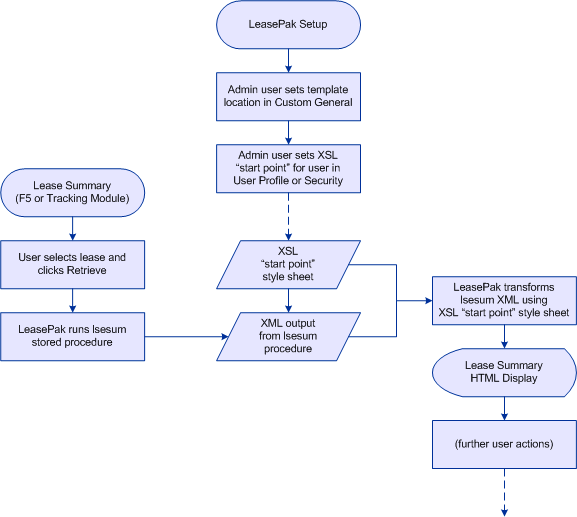

The following diagram illustrates the initial process LeasePak uses to display the user's Lease Summary "start point"--that is, the screen they first see after requesting a summary for a particular lease.

In the above diagram, lsesum refers to one of the following stored procedures:

Lease Summary F5	dbms_cp_cus_lsesum
Collection Tracking [U11]	dbms_cp_col_lsesum
Maturing Lease Tracking [U14]	dbms_cp_mat_lsesum
Customer Service Tracking [U16]	dbms_cp_cus_lsesum
Recovery Tracking [U17]	dbms_cp_rec_lsesum
Where dbms is either ora for Oracle or syb for Sybase.

An administrative user must set up both the global location for all XSL style sheets and the Lease Summary "start point"--the starting style sheet pertaining to Lease Summary F5 or the particular tracking module--for each user accessing Lease Summary. Then when the user retrieves the Lease Summary for a particular lease, LeasePak executes the lsesum stored procedure corresponding to either Lease Summary F5 or the tracking module. This in turn generates the XML that LeasePak transforms using the XSL "start point" style sheet specified for the user. What happens after the initial data retrieval and transformation depends on the design of the starting style sheet--by controlling what links appear on this sheet, you control what the user is able to subsequently access.



Customization Components

LeasePak provides the following components that you can use as building blocks for your Lease Summary customizations:

leasesum stored procedures

LeasePak provides the following stored procedures to perform the initial retrieval of data, the same type of data featured by the traditional Lease Summary, outputting the data in XML format.

Lease Summary F5	dbms_cp_cus_lsesum
Collection Tracking [U11]	dbms_cp_col_lsesum
Maturing Lease Tracking [U14]	dbms_cp_mat_lsesum
Customer Service Tracking [U16]	dbms_cp_cus_lsesum
Recovery Tracking [U17]	dbms_cp_rec_lsesum
Where dbms is either ora for Oracle or syb for Sybase.

You can customize these to add, change, or delete data to correspond to your style sheet customizations. From these procedures you can also call additional user-defined procedures. Refer to the section Stored Procedures and XML for more information.

Lease Summary XSL style sheets

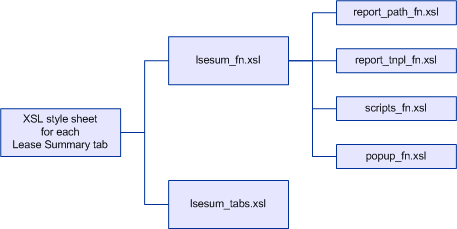

LeasePak includes several XSL style sheets emulating the traditional Lease Summary tabs. You can use these as is, or you can customize them to increase or decrease the number of tabs, eliminate tabs altogether, add, change, or delete fields on the tabs, or structure the Lease Summary in any way that meets your business requirements. Refer to the section XSL Style Sheets for more information.

Function templates and JavaScript functions

LeasePak provides an assortment of functions you can reference in your style sheets that allow you to call additional user-defined stored procedures, access LeasePak updates and reports from links in Lease Summary, transform pre-generated XML, apply CSS style sheets to your pages, format currency and phone numbers, and more. Refer to the section XSL Style Sheets for more information.

Debugging tools

LeasePak includes tools that allow you to view the Lease Summary HTML, XML, or XSL from within LeasePak, and, in cases of XSL syntax errors, LeasePak generates a message in place of the Lease Summary providing current conditions, as well as a standard XSL syntax error message. Refer to the section Debugging Tools for more information.





Stored Procedures and XML

• Custom Stored Procedure Structure (Sybase Example)
• Data Types
• Column Aliases
• NetSol Reserved Column Aliases
• XML Output File Names and Locations

You cannot use stored procedures created or modified for XSLT customizations (LeasePak reports, Lease Summary, etc.) to update a LeasePak database.



File Names and Stored Procedure Names

Below are the file naming and procedure naming conventions of LeasePak database stored procedures:

File	Stored Procedure	Description
dbms_mp_procedure.sql	mp_procedure	NetSol stored procedures. NetSol ships these with each release. The user cannot modify them.
dbms_cp_procedure.sql	cp_procedure	Custom stored procedures. NetSol ships these with each release. The user can make extensive modifications, but since LeasePak executes these as part of its program, the user must not delete any of the procedures outright and must not change or delete the interface (the initial arguments or parameters) that LeasePak uses to run the procedures.
dbms_up_procedure.sql	up_procedure	User stored procedures. The user must maintain these for each release. These are wholly user-defined.
For the above names, dbms is either ora for Oracle or syb for Sybase, and procedure is the name of the stored procedure.

Read the instructions in End User Code Objects (part of the System Administration Guide) before modifying any of the cp procedures or creating up procedures. Do not modify the originals of cp procedures that install with the LeasePak software.



Custom Stored Procedure Structure (Sybase Example)
Sybase Example

Below are the main sections of a typical custom stored procedure (note that some sections are excerpts), using syb_cp_cus_lsesum as an example.

Each stored procedure script begins by reading in (using the ex command r) the contents of the file leasepak_syb_use, located in your environment's etc directory:

:r leasepak_syb_use
go

The file leasepak_syb_use contains the command

use leasepak_database

where leasepak_database is the name of the LeasePak database corresponding to your environment.

The next section of the script checks to see if a version of the procedure already exists. If so, the script drops it from the database:

if exists (select * from sysobjects where name = 'cp_cus_lsesum')
begin
    drop procedure cp_cus_lsesum
end
go

The script then creates a fresh version of the procedure along with its interface (also known as arguments or parameters):

create procedure cp_cus_lsesum  @lse_s          char(10),
                                @d_today_s      datetime
as

Do not modify the interface of a custom procedure (cp_*)--that is, do not change its arguments or parameters. LeasePak runs a cp_* procedure as part of its client software program, and it expects and needs the parameters as originally defined in order to run correctly. As long as you leave the parameters alone, you can customize the rest of the procedure in any way needed, following the guidelines for general structure and the rules for the use of column aliases.

As delivered with the LeasePak software, the Lease Summary procedures execute a central procedure mp_xml_lsesum to retrieve and format the basic lease summary information:

begin
    /*------------------------------------------------------------------|
    |   NetSol maintains one centralized stored procedure (mp_xml_lsesum)  |
    |   to retrieve Lease Summary information for the various tracking  |
    |   modules.  The mp_xml_lsesum procedure is called from the        |
    |   cp_col_lsesum procedure of each tracking module.              |
    |-------------------------------------------------------------------|
    |   If there are special business requirements for this tracking    |
    |   module for a particular client of NetSol, then please feel free    |
    |   to remove the call to the mp_xml_lsesum procedure below, and    |
    |   place in your custom SQL code here.  Just do not change the     |
    |   interface above.  The interface is the name of the procedure    |
    |   (cp_cus_lsesum), the names and types of the parameters, and     |
    |   the number of parameters.                                       |
    |------------------------------------------------------------------*/
    exec mp_xml_lsesum @lse_s, @d_today_s
end
go

If instead you wish to customize this portion of the procedure, you can replace the begin...end block shown above with your own SQL. The following example begins by declaring variables--selecting data in order to facilitate the use of column aliases:

    declare @por_s                      char(2)                 -- Portfolio
    declare @com_s                      char(2)                 -- Region
    declare @reg_s                      char(2)                 -- Company
    declare @off_s                      char(3)                 -- Office
    declare @les_s                      char(9)                 -- Lessee #
    declare @cus_s                      char(9)                 -- Customer #
    declare @grp_s                      char(3)                 -- Group #

In circumstances where you do not need to specify column aliases, you also do not need to declare variables. For an example of this, refer to the section Alternate Structure.

At the beginning of the main procedure, the script must ensure that any incoming arguments or parameters needed in select statements are properly aligned and space padded:

begin
    -- Right justify the lease value
    select @lse_s = (select stuff( space(10), 11 - char_length(rtrim(@lse_s)), char_length(rtrim(@lse_s)), rtrim(@lse_s)) )

The script should also check to see if key values (in this case, the lease for Lease Summary) exist. If not, the script jumps to error_exit and resumes execution from that point:

    -- First check to see if lease number exists
    if not exists ( select lse_s from rls where lse_s = @lse_s)
        goto error_exit

This section of the script selects the data and assigns it to the corresponding variables:

    select
        @por_s                  = rls.por_s,
        @com_s                  = rls.com_s,
        @reg_s                  = rls.reg_s,
        @off_s                  = rls.off_s,
        @les_s                  = rls.les_s,
        @cus_s                  = rls.cus_s,
        @grp_s                  = rls.grp_s
    from
        rls
    where
        rls.lse_s               = @lse_s

In circumstances where you do not need to specify column aliases, you also do not need to load your data into variables. For an example of this, refer to the section Alternate Structure.

The script then uses the select statement to pair the variable data with column aliases:

    select
        -- Main Lease Information
        @por_s                                                  por_s,
        @com_s                                                  com_s,
        @reg_s                                                  reg_s,
        @off_s                                                  off_s,
        @lse_s                                                  lse_s,
        @les_s                                                  les_s,
        @cus_s                                                  cus_s,
        @grp_s                                                  grp_s,
        @d_today_s                                              d_today_s,
        @tracking_c                                             tracking_c,

This uses the SQL syntax

select value1 column_alias1, value2 column_alias2, ...

where value is either a LeasePak database column, variable value, computed value, returned value from a function, etc. and column-alias is the column-alias or column-heading name.

LeasePak creates XML element names using the column aliases. Therefore all column-alias names must conform to XML element naming specifications. See Column Aliases for more information.

The end of the script includes error_exit and the final go command:

error_exit:

end
go

The NetSol stored procedure mp_xml_lsesum provides extensive examples of the syntax discussed above.

Alternate Structure
Sybase Example

In cases where the stored procedure uses the original column names, using variables or assigning column aliases is not needed. An example of this is in the NetSol stored procedure mp_remit_info.

Although mp_remit_info is an NetSol stored procedure, you can use the same structure with the customizable procedures.

:r leasepak_syb_use
go
if exists (select * from sysobjects where name = 'mp_remit_info')
begin
    drop procedure mp_remit_info
end
go
create procedure mp_remit_info  @remit_s char(4)
as
begin
    -- Right justify the remit value
    select @remit_s = (select stuff( space(4), 5 - char_length(rtrim(@remit_s)), char_length(rtrim(@remit_s)), rtrim(@remit_s)) )

    -- Get the remittance data
    select * from rna where rna_flg_c = '8' and rna_code_s = @remit_s
end
go

Here the script is selecting fields from a single table. The output will use the original column names for the column headings.



Data Types

Below are the Oracle and Sybase datatypes you can use within the stored procedures, as well as the formatting that the parser uses when writing the XML output for each datatype:

Oracle

Datatype	Format
CHAR(n) (for general data)	No special format
CHAR(n) (for time value data)	24-hour HH:MM:SS
DATE	MM/DD/YY or DD/MM/YY, according to your LeasePak Date Format Preference (from rsc.date_format_pref_s)
NUMBER(precision,scale)	Comma (,) as thousands separator
INTEGER	Comma (,) as thousands separator
VARCHAR2(n)	No special format

Sybase

Datatype	Format
char(n) (for general data)	No special format
char(n) (for time value data)	24-hour HH:MM:SS
datetime	MM/DD/YY or DD/MM/YY, according to your LeasePak Date Format Preference (from rsc.date_format_pref_s)
double precision	Comma (,) as thousands separator
integer	Comma (,) as thousands separator



Column Aliases

The parser that processes the stored procedures needs either the original column name or a column alias for each column returned by the final output select statement in order to create the corresponding XML element. If you first select into variables, create a column that is a composite of two or more columns, use aggregate functions such as sum() or count(), or otherwise select a column that is not simply the data value of a single table column, you will need to assign an alias (also known as column heading) to that column.

For ease of reference and consistency with LeasePak database column names, NetSol recommends using the following column alias naming conventions:

Datatype	Recommended Column Alias
CHAR, VARCHAR2, char (for general data)	name_s
CHAR, char (for time value data)	t_name_s
DATE, datetime	d_name_s
NUMBER, double precision	name_d
INTEGER, integer	name_l
For the above examples, name is main body of the column alias name, which may consist of multiple words or abbreviations separated by underscores.

The column heading or alias name becomes the name of the corresponding XML element. Therefore column headings and aliases must conform to XML naming specifications. They must also conform to the specifications listed below, which are a subset of the XML naming specifications. Note that only lowercase letters are allowed; LeasePak translates any uppercase letters found in alias names to lowercase.

A column alias name may only begin with one of the following:

• Lowercase letter (a-z)*
• Underscore (_)

*A column alias name may not begin with xml.

A column alias name may only contain the following:

• Lowercase letters (a-z)
• Numbers (0-9)
• Underscores (_)

A column alias name may not contain:

• Any punctuation symbols other than underscores
• Whitespace of any kind (space, non-breaking space, carriage return, line feed, new line, etc.)



NetSol Reserved Column Aliases

In the NetSol examples above, the final section of the stored procedure has the select statement containing the value/column alias pairs that LeasePak will use to produce the XML output:

    select
        -- Main Lease Information
        @por_s                                                  por_s,
        @com_s                                                  com_s,
        @reg_s                                                  reg_s,
        @off_s                                                  off_s,
        @lse_s                                                  lse_s,
        @les_s                                                  les_s,
        @cus_s                                                  cus_s,
        @grp_s                                                  grp_s,
        @d_today_s                                              d_today_s,
        @tracking_c                                             tracking_c,

The correct use of the msi_ reserved column aliases in this section of the stored procedure causes LeasePak to perform one or more predefined calculations and write out the results to corresponding special elements in the XML output. The following describes these calculations and the NetSol reserved column aliases LeasePak needs to perform them.

Do not create your own custom aliases beginning with msi_--NetSol reserves this prefix for future aliases, calculations, and result XML elements.

msi_stax_amt_d

When the alias switch msi_calc_taxes_c is set to 'Y,' LeasePak calculates the sales/use tax amount based on the lease's tax rate and the payment amount:

the lease's sales/use tax rate
* the payment amount

and writes the result to the element <msi_stax_amt_d> in the XML output.

For example, Lease 101 has a sales/use tax rate of 7.25% and the payment amount is $500.00. The result for msi_stax_amt_d would be:

500.00 * 0.0725 = 36.25

Do not include msi_stax_amt_d in the stored procedure.

This calculation requires that the user include the following aliases in the stored procedure:

• msi_calc_taxes_c - A switch controlling whether or not to calculate msi_stax_amt_d. 'Y' means calculate, while 'N' means do not calculate.
• msi_lse_s - The lease number.
• msi_pmt_amt_d - The payment amount.

Sybase example:

select
    'Y'            msi_calc_taxes_c,
    @lse_s         msi_lse_s,
    @pmt_amt_d     msi_pmt_amt_d


(etc.) where you have assigned values to @lse_s and @pmt_amt_d previously in the stored procedure.

msi_next_pmt_d

When you include the alias msi_next_pmt_d in the stored procedure, LeasePak calculates the next payment amount as

the amount of msi_pmt_amt_d (required)
+ the amount of msi_stax_amt_d (if any--optional)
+ the amount of msi_adj_next_d (if any--optional)

and writes the result to the element <msi_next_pmt_d> in the XML output.

You must include msi_next_pmt_d in the stored procedure. You can assign it any value--LeasePak will perform the calculation and overwrite your assigned value with the calculated result.

This calculation also requires that the user include the following alias in the stored procedure:

• msi_lse_s - The lease number.
• msi_pmt_amt_d - The payment amount.

If you want LeasePak to use msi_stax_amt_d in the calculation, see the section on msi_stax_amt_d for information on its required aliases.

If you want LeasePak to use msi_adj_next_d in the calculation, include the alias in the stored procedure.

• msi_adj_next_d - The adjustment amount for the next payment.

Sybase example:

select
    'Y'            msi_calc_taxes_c,
    @lse_s         msi_lse_s,
    @pmt_amt_d     msi_pmt_amt_d,
    @adj_next_d    msi_adj_next_d,
    0.0            msi_next_pmt_d


(etc.) where you have assigned values to @lse_s, @pmt_amt_d, and @adj_next_d previously in the stored procedure.

msi_lse_amtN_tax_d

When the alias switch msi_calc_taxes_c is set to 'Y,' LeasePak calculates the lease sales/use tax amount based on the lease's tax rate and the payment amounts 1-5:

the lease's sales/use tax rate
* the payment amount

and writes the result to the element <msi_lse_amtN_tax_d> (where N is payment 1, 2, 3, 4, or 5) in the XML output.

For an example, refer to the section on msi_stax_amt_d.

Do not include msi_lse_amtN_tax_d in the stored procedure.

This calculation requires that the user include the following aliases in the stored procedure:

• msi_calc_taxes_c - A switch controlling whether or not to calculate msi_stax_amt_d. 'Y' means calculate, while 'N' means do not calculate.
• msi_lse_s - The lease number.
• msi_lse_amtN_tax_d - The payment amount, where N is payment 1, 2, 3, 4, or 5.

Sybase example:

select
    'Y'                msi_calc_taxes_c,
    @lse_s             msi_lse_s,
    @pmt_lse_amt1_d    msi_lse_amt1_tax_d,
    @pmt_lse_amt2_d    msi_lse_amt2_tax_d,
    @pmt_lse_amt3_d    msi_lse_amt3_tax_d,
    @pmt_lse_amt4_d    msi_lse_amt4_tax_d,
    @pmt_lse_amt5_d    msi_lse_amt5_tax_d


(etc.) where you have assigned values to @lse_s and @pmt_lse_amtN_d previously in the stored procedure.

msi_unit_amtN_tax_d

When the alias switch msi_calc_taxes_c is set to 'Y,' LeasePak calculates the asset sales/use tax amount based on the asset's tax rate and the payment amounts 1-5:

the asset's sales/use tax rate
* the payment amount

and writes the result to the element <msi_unit_amtN_tax_d> (where N is payment 1, 2, 3, 4, or 5) in the XML output.

For an example, refer to the section on msi_stax_amt_d.

Do not include msi_unit_amtN_tax_d in the stored procedure.

This calculation requires that the user include the following aliases in the stored procedure:

• msi_calc_taxes_c - A switch controlling whether or not to calculate msi_stax_amt_d. 'Y' means calculate, while 'N' means do not calculate.
• msi_lse_s - The lease number.
• msi_unit_s - The asset number.
• msi_unit_amtN_tax_d - The payment amount, where N is payment 1, 2, 3, 4, or 5.

Sybase example:

select
    'Y'                 msi_calc_taxes_c,
    @lse_s              msi_lse_s,
    @unit_s             msi_unit_s,
    @pmt_unit_amt1_d    msi_unit_amt1_tax_d,
    @pmt_unit_amt2_d    msi_unit_amt2_tax_d,
    @pmt_unit_amt3_d    msi_unit_amt3_tax_d,
    @pmt_unit_amt4_d    msi_unit_amt4_tax_d,
    @pmt_unit_amt5_d    msi_unit_amt5_tax_d


(etc.) where you have assigned values to @lse_s, @unit_s, and @pmt_unit_amtN_d previously in the stored procedure.

msi_rem_net_inv_d

When you include the alias msi_rem_net_inv_d in the stored procedure and set the alias switch msi_calc_rem_net_inv_c to 'Y,' LeasePak calculates the remaining net investment for the lease and writes the result to the element <msi_rem_net_inv_d> in the XML output.

You must include msi_rem_net_inv_d in the stored procedure. You can assign it any value--LeasePak will perform the calculation and overwrite your assigned value with the calculated result.

This calculation also requires that the user include the following alias in the stored procedure:

• msi_calc_rem_net_inv_c - A switch controlling whether or not to calculate msi_rem_net_inv_d. 'Y' means calculate, while 'N' means do not calculate.
• msi_lse_s - The lease number.

Sybase example:

select
    'Y'            msi_calc_rem_net_inv_c,
    @lse_s         msi_lse_s,
    0.0            msi_rem_net_inv_d


(etc.) where you have assigned a value to @lse_s previously in the stored procedure.

msi_p_lse_stax_rate_d

When you include the alias msi_p_lse_stax_rate_d in the stored procedure and set the alias switch msi_calc_lse_stax_rate_c to 'Y,' LeasePak calculates the sales tax rate for the lease and writes the result to the element <msi_p_lse_stax_rate_d> in the XML output.

You must include msi_p_lse_stax_rate_d in the stored procedure. You can assign it any value--LeasePak will perform the calculation and overwrite your assigned value with the calculated result.

This calculation also requires that the user include the following alias in the stored procedure:

• msi_calc_lse_stax_rate_c - A switch controlling whether or not to calculate msi_p_lse_stax_rate_d. 'Y' means calculate, while 'N' means do not calculate.
• msi_lse_s - The lease number.

Sybase example:

select
    'Y'            msi_calc_lse_stax_rate_c,
    @lse_s         msi_lse_s,
    0.0            msi_p_lse_stax_rate_d


(etc.) where you have assigned a value to @lse_s previously in the stored procedure.



XML Output File Names and Locations

The parser processing the stored procedure writes the XML files using the XSL style sheet file name (without the .xsl extension) for both the XML file name and the parent (or root) record within the XML file. The parser writes the file to the reports\xml directory located in the user's LeasePak client software user folder. The default location for this varies by Windows version:

• Windows 98 - C:\My Documents\LeasePak\
• Windows NT - C:\winnt\Profiles\user\Personal\LeasePak\
• Windows 2000 - C:\Documents and Settings\user\My Documents\LeasePak\
• Windows XP - C:\Documents and Settings\user\My Documents\LeasePak\

LeasePak client software at your site may be set up with user folders in a centralized (network) location or you may use shared folders for all or various groups of users. While the user is logged on to the LeasePak client, any generated XML files remain in the user's xml directory. However, when the user exits LeasePak, all XML files are cleaned from the directory.

If you wish to retain XML data from a user's session, you will need to copy or move the XML file from the xml directory before the user exits LeasePak.





XSL Style Sheets

By default, the XSL style sheets for Lease Summary are located in install_path\Report Templates, where install_path is the installed location of the LeasePak client software on each user's computer. You can instead place a single set of the contents of this directory (including subdirectories and files) in a centralized location, then specify that location in Custom General [U0712]. Refer to the LeasePak Setup section for more information.



Lease Summary Style Sheet Overview

LeasePak provides a set of XSL Style Sheets that correspond to the tabs of the traditional Lease Summary. Each "tab" style sheet includes (using <xsl:include>) the style sheets lsesum_fn.xsl and lsesum_tabs.xsl:

• lsesum_fn.xsl includes:
  • report_path_fn.xsl - Always included, contains the named template fn_get_rpt_path that specifies the path to the XSL style sheet directory. Refer to the section LeasePak Setup for more information.



  • report_tmpl.xsl - Displays the run date, run time, and user ID at the top of the Lease Summary screen, LeasePak reports, and other XSL style sheets.



  • scripts_fn.xsl - References the JScript and JavaScript files located in install_path\Report Templates\scripts and contains named templates calling specific JScript and JavaScript functions used by the XSL style sheets. The file scripts_fn.xsl also contains several formatting templates that do not call JScript or JavaScript functions.



  • popup_fn.xsl - Includes JavaScript, JavaScript references, and template functions to set up and generate pop-up windows.

    The functions that the user accesses to include pop-up windows in templates are located in scripts_fn.xsl.

• lsesum_tabs.xsl contains the calls (with parameters) to fn_http_sql_request for each Lease Summary tab style sheet.

Each Lease Summary tab style sheet (lsesum_lessee.xsl, lsesum_lease.xsl, etc.) contains a set of links to the other tabs. The following example is from the style sheet lsesum_lessee.xsl:

<div> <!-- id="v" -->
	<!-- ================================================================== -->
	<!--                       TITLE FOR TABS 		        	-->
	<!-- ================================================================== -->
	<span id="c">Select View:</span>
	<xsl:call-template name="fn_active_tab">
		<xsl:with-param name="display_value">Lessee</xsl:with-param>
		<xsl:with-param name="hover_value">Lessee information...</xsl:with-param>
	</xsl:call-template>
	<xsl:call-template name="fn_lsesum_tab2"/><em id="e"></em>
	<xsl:call-template name="fn_lsesum_tab3"/>
	</div>

The tag <em id="e"></em> provides a divider between adjacent non-active tabs.

The templates that the links call (fn_lsesum_tab1, fn_lsesum_tab2, etc.) are in the style sheet lsesum_tabs.xsl. Here is an example of the template for Tab 1:

<!-- ================================= -->
<!--              T A B # 1            -->
<!-- ================================= -->
<xsl:template name="fn_lsesum_tab1">
	<!-- ================================================================== -->
	<!--                           LESSEE                                   -->
	<!-- ================================================================== -->
	<xsl:call-template name="fn_http_sql_request">
		<xsl:with-param name="xsl_file">lsesum_lessee</xsl:with-param>
		<xsl:with-param name="display_value">Lessee</xsl:with-param>
		<xsl:with-param name="hover_value">Lessee information...</xsl:with-param>
		<xsl:with-param name="class">k</xsl:with-param>
		<xsl:with-param name="stored_proc">cp_cus_lsesum</xsl:with-param>
		<xsl:with-param name="data0"><xsl:value-of select='lse_s'/></xsl:with-param>
		<xsl:with-param name="data1">
			<xsl:call-template name="fn_format_date_yyyymmdd">
				<xsl:with-param name="date">
					<xsl:value-of select='d_today_s'/>
				</xsl:with-param>
			</xsl:call-template>
		</xsl:with-param>
		<xsl:with-param name="new_window">False</xsl:with-param>
	</xsl:call-template>
</xsl:template>

The tab templates and lsesum_tabs.xsl contain the calls to the function templates that run stored procedures, retrieve data, access LeasePak menu items, and provide special features in the output HTML. Most of these function templates are in the style sheet scripts_fn.xsl, described in the next section.



scripts_fn.xsl

The style sheet lsesum_fn.xsl includes the style sheet scripts_fn.xsl. In turn, scripts_fn.xsl includes the major function templates that run stored procedures, retrieve data, and access LeasePak menu items, as well as several formatting function templates.

Function Template Customizations

The XML-based Lease Summary is set up to allow the user to customize most style sheets, templates, and scripts as needed. If you require changes in the way any of the function templates work, or if you need additional functions, you can use the functions provided in scripts_fn.xsl as a starting point for your customizations. However, NetSol recommends that you save a copy of the style sheets, templates, and scripts as they were installed with the client software in case you need to restore a customized template or script to its original state.

The function templates in scripts_fn.xsl fall into two main categories--those that call scripts (JavaScript and/or JScript), indicated in the following listing by Calls script(s): Yes, and those that do not call scripts, indicated in the following listing by Calls script(s): No. When customizing function templates that call scripts, you may also need to modify the scripts. For function templates that do not call scripts, you only need to consider the content of the template itself. Contact your NetSol representative for more information.



fn_sort_column

Location: scripts_fn.xsl
Calls script(s): Yes

This template, when applied to column headers in a table, makes the table sortable on any selected column.

The template takes the incoming parameters and passes them to the JavaScript function SortColumn, which sorts the table on the selected column.

Call the template from the <th> column header of a table:

<th width="70" rowspan="2" align="right" class="colhdr">
	<xsl:call-template name="fn_sort_column">
		<xsl:with-param name="column_hdr">Invoice#\nCredit Memo</xsl:with-param>
		<xsl:with-param name="class">colhdr</xsl:with-param>
		<xsl:with-param name="column">0</xsl:with-param>
	</xsl:call-template>
</th>

Parameters:

• column_hdr - the column heading name; this will become the text of the link that executes the sort request
• class - the CSS class of the link
• column - an index number beginning with zero that specifies where the column is in relation to the other columns in the table

Function template from scripts_fn.xsl:

<!-- ================================ -->
<!-- Function to make column sortable -->
<!-- ================================ -->
<xsl:template name="fn_sort_column">
  <xsl:param name="column_hdr"></xsl:param>
  <xsl:param name="class"></xsl:param>
  <xsl:param name="column"></xsl:param>
    <SCRIPT LANGUAGE="JavaScript">
      SortColumn("<xsl:value-of select="$column_hdr"/>", "<xsl:value-of select="$class"/>", "<xsl:value-of select="$column"/>");
    </SCRIPT>
</xsl:template>



fn_http_request

Location: scripts_fn.xsl
Calls script(s): Yes

This template calls scripts that work with LeasePak to make one of the following requests:

• Invoice Detail - requires the invoice number for the data parameter
• Accounts Receivable Balancing [R0404] - requires the lease number for the data parameter
• Daily Transaction Journal [R0405] - requires the lease number for the data parameter
• Account Payment History [R0909] - requires the lease number for the data parameter
• Cash Control Payment History [R0926] - requires the lease number for the data parameter

This template differs from fn_lp_menu_request, not only with its restricted list of options, but also in that each of these options is guaranteed to bypass the initial selection criteria screens for the report, as long as you supply a valid data parameter.

The template takes the incoming parameters and passes them to the JavaScript function HTTPRequest, which in turn calls a corresponding JScript function that processes the request.

Call the function from any part of a template used to display text:

<td>
	<xsl:call-template name="fn_http_request">
		<xsl:with-param name="service">R0404</xsl:with-param>
		<xsl:with-param name="xsl_file">R0404</xsl:with-param>
		<xsl:with-param name="hover_value">A/R Balancing</xsl:with-param>
		<xsl:with-param name="display_value"><xsl:value-of select="tot_amt_d"/></xsl:with-param>
		<xsl:with-param name="class">dl_td_url</xsl:with-param>
		<xsl:with-param name="data"><xsl:value-of select='lse_s'/></xsl:with-param>
		<xsl:with-param name="new_window">True</xsl:with-param>
	</xsl:call-template>
</td>

Parameters:

• xsl_file - the name of the XSL style sheet you want to use to transform the XML; do not include the file extension with the name
• display_value - the text of the link that executes the request
• class - the CSS class of the link
• hover_value - the text that appears during a mouse-over event
• service - invoice, R0404, R0405, R0909, or R0926, corresponding to one of the five options listed above
• data - the key lookup data as specified in the list above
• new_window - True if you want the results to display in a new window; False if you want the results to display in the current window

Function template from scripts_fn.xsl:

<!-- ============================= -->
<!-- Function to make HTTP request -->
<!-- ============================= -->
<xsl:template name="fn_http_request">
  <xsl:param name="xsl_file"></xsl:param>
  <xsl:param name="display_value"></xsl:param>
  <xsl:param name="class"></xsl:param>
  <xsl:param name="hover_value"></xsl:param>
  <xsl:param name="service"></xsl:param>
  <xsl:param name="data"></xsl:param>
  <xsl:param name="new_window"></xsl:param>

    <SCRIPT LANGUAGE="JavaScript">
      HTTPRequest("<xsl:value-of select="$service"/>", "<xsl:value-of select="$xsl_file"/>", "<xsl:value-of select="$display_value"/>", "<xsl:value-of select="$class"/>", "<xsl:value-of select="$hover_value"/>", "<xsl:value-of select="$data"/>", "<xsl:value-of select="$new_window"/>");
    </SCRIPT>

</xsl:template>



fn_http_sql_request

Location: scripts_fn.xsl
Calls script(s): Yes

This function template calls scripts that work with LeasePak to run the specified stored procedure, transform the XML output with the specified XSL style sheet, and display the results.

The template takes the incoming parameters and passes them to the JavaScript function HTTPRequest, which in turn calls a corresponding JScript function that processes the request.

Call the function from any part of a template used to display text:

<td colspan="1" class="dl_td" align="right">
	<xsl:call-template name="fn_http_sql_request">
		<xsl:with-param name="xsl_file">misc_rgc_info</xsl:with-param>
		<xsl:with-param name="hover_value">List of CoLessee/Guarantors/User-defined clients ...</xsl:with-param>
		<xsl:with-param name="display_value">Yes</xsl:with-param>
		<xsl:with-param name="class">dl_td_url</xsl:with-param>
		<xsl:with-param name="stored_proc">cp_rgc_info</xsl:with-param>
		<xsl:with-param name="data0"><xsl:value-of select='lse_s'/></xsl:with-param>
		<xsl:with-param name="new_window">True</xsl:with-param>
	</xsl:call-template>
</td>

Parameters:

• xsl_file - the name of the XSL style sheet you want to use to transform the output XML; do not include the file extension with the name
• display_value - the text of the link that executes the request
• class - the CSS class of the link
• hover_value - the text that appears during a mouse-over event
• new_window - True if you want the results to display in a new window; False if you want the results to display in the current window
• stored_proc - the name of the stored procedure to run
• data0 - the first of five available parameters to pass to the stored procedure
• data1 - the second of five available parameters to pass to the stored procedure
• data2 - the third of five available parameters to pass to the stored procedure
• data3 - the fourth of five available parameters to pass to the stored procedure
• data4 - the fifth of five available parameters to pass to the stored procedure

When you call fn_http_sql_request, you can pass up to five parameters to your stored procedure (data0, data1, data2, data3, and data4). The stored procedures cp_col_lsesum, cp_cus_lsesum, cp_mat_lsesum, and cp_rec_lsesum only use the first three.

If you have a set of data that you wish to appear at the top of every tab, you must either include this data in your select statement for each tab's stored procedure or pass this data as parameters with each call to fn_http_sql_request.

Function template from scripts_fn.xsl:

<!-- ===================================== -->
<!-- Function to make HTTP Sql Qry request -->
<!-- ===================================== -->
<xsl:template name="fn_http_sql_request">
  <xsl:param name="xsl_file"></xsl:param>
  <xsl:param name="display_value"></xsl:param>
  <xsl:param name="class"></xsl:param>
  <xsl:param name="hover_value"></xsl:param>
  <xsl:param name="new_window"></xsl:param>
  <xsl:param name="stored_proc"></xsl:param>
  <xsl:param name="data0"></xsl:param>
  <xsl:param name="data1"></xsl:param>
  <xsl:param name="data2"></xsl:param>
  <xsl:param name="data3"></xsl:param>
  <xsl:param name="data4"></xsl:param>

    <xsl:variable name="spdata">
      <xsl:value-of select="concat('<sp_name>', $stored_proc, '</sp_name>', '<param0>', $data0, '</param0>', '<param1>', $data1, '</param1>', '<param2>', $data2, '</param2>', '<param3>', $data3, '</param3>', '<param4>', $data4, '</param4>')"/>
    </xsl:variable>

    <SCRIPT LANGUAGE="JavaScript">
      HTTPRequest("sql_qry", "<xsl:value-of select="$xsl_file"/>", "<xsl:value-of select="$display_value"/>", "<xsl:value-of select="$class"/>", "<xsl:value-of select="$hover_value"/>", "<xsl:value-of select="$spdata"/>", "<xsl:value-of select="$new_window"/>");
    </SCRIPT>

</xsl:template>



fn_xmlxsl_transform

Location: scripts_fn.xsl
Calls script(s): Yes

This function template calls scripts that work with LeasePak to take an existing specified XML data file, transform it using the specified XSL style sheet, and display the results. The template takes the incoming parameters and passes them to the JavaScript function XMLXSLTransform, which in turn calls a corresponding JScript function that processes the request.

Since LeasePak runs the stored procedure lsesum (meaning cp_col_lsesum, cp_cus_lsesum, cp_mat_lsesum, or cp_rec_lsesum) when the user first retrieves Lease Summary information in LeasePak, if the data you select in lsesum is sufficient to transform all the style sheet tabs, you may wish to substitute fn_xmlxsl_transform for fn_http_sql_request. This uses any specified existing XML data file with a specified style sheet, saving time by not making another request to the LeasePak database.

Call the function from any part of a template used to display text:

<xsl:call-template name="fn_xmlxsl_transform">
	<xsl:with-param name="xml_file">xml_file</xsl:with-param>
	<xsl:with-param name="xsl_file">xsl_file</xsl:with-param>
	<xsl:with-param name="display_value">display_value</xsl:with-param>
	<xsl:with-param name="hover_value">hover_value</xsl:with-param>
	<xsl:with-param name="class">class</xsl:with-param>
	<xsl:with-param name="new_window">new_window</xsl:with-param>
</xsl:call-template>

The template fn_xmlxsl_transform takes the following parameters:

• xml_file - the name of the XML file you wish to transform (do not include the file extension with the name); this file only exists as long as the user is logged on LeasePak
• xsl_file - the name of the XSL style sheet you want to use to transform the XML; do not include the file extension with the name
• display_value - the text of the link that executes the request
• hover_value - the text that appears when the user positions the mouse pointer above the display text.
• class - the CSS class of the link (<a> tag)
• new_window - True if you want the results to display in a new window; False if you want the results to display in the current window

Function template from scripts_fn.xsl:

<!-- ============================================================================ -->
<!-- Function to take an existing XML and XSL document to create an HTML document -->
<!-- ============================================================================ -->
<xsl:template name="fn_xmlxsl_transform">
	<xsl:param name="xml_file"></xsl:param>
	<xsl:param name="xsl_file"></xsl:param>
	<xsl:param name="display_value"></xsl:param>
	<xsl:param name="class"></xsl:param>
	<xsl:param name="hover_value"></xsl:param>
	<xsl:param name="new_window"></xsl:param>

	<SCRIPT LANGUAGE="JavaScript">
		XMLXSLTransform("<xsl:value-of select="$xml_file"/>", "<xsl:value-of select="$xsl_file"/>", "<xsl:value-of select="$display_value"/>", "<xsl:value-of select="$class"/>", "<xsl:value-of select="$hover_value"/>", "<xsl:value-of select="$new_window"/>");
	</SCRIPT>

</xsl:template>



fn_lp_menu_request

Location: scripts_fn.xsl
Calls script(s): Yes

This function template calls scripts that work with LeasePak to access any of the LeasePak Menu Options. Many of the style sheets that LeasePak provides feature calls to fn_lp_menu_request, providing links that access LeasePak reports or updates from the Lease Summary tabs.

As with the other request-type templates, fn_lp_menu_request takes the incoming parameters and passes them to the JavaScript function LPMenuReq, which in turn calls a corresponding JScript function that processes the request.

This template differs from fn_http_request in that while it provides a comprehensive list of LeasePak menu options, bypassing the initial selection criteria screens varies from option to option, even when you supply valid parameters.

Call the function from any part of a template used to display text:

<td>
	<xsl:call-template name="fn_lp_menu_request">
		<xsl:with-param name="menu">U0210</xsl:with-param>
		<xsl:with-param name="display_value"><xsl:text disable-output-escaping="yes"><![CDATA[&raquo;&nbsp;]]></xsl:text>Change</xsl:with-param>
		<xsl:with-param name="hover_value">U0210 Asset update...</xsl:with-param>
		<xsl:with-param name="asset"><xsl:value-of select="unit_s"/></xsl:with-param>
		<xsl:with-param name="class">dl_th_url</xsl:with-param>
	</xsl:call-template>
</td>

The above example shows only a few of the parameters available when calling this template. The parameters that apply to a menu request will vary by menu item and current data available. The full list of parameters includes:

• menu - one of any of the menu items available in Menu Options
• display_value - the text of the link that executes the request
• class - the CSS class of the link
• hover_value - the text that appears during a mouse-over event
• application - the current application number
• asset - the current asset number
• batchnum - the current batch number
• broker - the current Broker client number
• customer - the current Customer client number
• group - the current Group number
• guarantor - the current Guarantor client number
• investor - the current Investor client number
• invoice - the current invoice number
• lease - the current lease number
• lender - the current Lender client number
• lessee - the current Lessee client number
• misc - value depends on the type of menu request you are making. Currently this parameter only works with notebook requests, for which it takes the entry date-time of the note (format YYYYMMDDHHMISSFFF).
• notebook - any of the notebook table names: mja, mjc, or mjl. If you are making a notebook request, also specify the appropriate key value (asset for mja, lessee for mjc, application or lease for mjl. Use misc to specify the entry date-time of the note (format YYYYMMDDHHMISSFFF).
• vendor - the current Vendor client number

For any given menu request, you should only use the parameters appropriate to the report or update. Unlike with fn_http_request, supplying parameters does not guarantee you will bypass the initial selection criteria screens. Your ability to use parameters to bypass these screens will vary from option to option.

Function template from scripts_fn.xsl:

<!-- ===================================== -->
<!-- Function to make LP Menu request      -->
<!-- ===================================== -->
<xsl:template name="fn_lp_menu_request">
	<xsl:param name="menu"></xsl:param>
	<xsl:param name="display_value"></xsl:param>
	<xsl:param name="class"></xsl:param>
	<xsl:param name="hover_value"></xsl:param>
	<xsl:param name="application"></xsl:param>
	<xsl:param name="asset"></xsl:param>
	<xsl:param name="batchnum"></xsl:param>
	<xsl:param name="broker"></xsl:param>
	<xsl:param name="customer"></xsl:param>
	<xsl:param name="group"></xsl:param>
	<xsl:param name="guarantor"></xsl:param>
	<xsl:param name="investor"></xsl:param>
	<xsl:param name="invoice"></xsl:param>
	<xsl:param name="lease"></xsl:param>
	<xsl:param name="lender"></xsl:param>
	<xsl:param name="lessee"></xsl:param>
	<xsl:param name="misc"></xsl:param>
	<xsl:param name="notebook"></xsl:param>
	<xsl:param name="vendor"></xsl:param>

	<SCRIPT LANGUAGE="JavaScript">
		LPMenuReq("<xsl:value-of select="$menu"/>", "<xsl:value-of select="$display_value"/>", "<xsl:value-of select="$class"/>", "<xsl:value-of select="$hover_value"/>", "<xsl:value-of select="$application"/>", "<xsl:value-of select="$asset"/>", "<xsl:value-of select="$batchnum"/>","<xsl:value-of select="$broker"/>", "<xsl:value-of select="$customer"/>", "<xsl:value-of select="$group"/>", "<xsl:value-of select="$guarantor"/>", "<xsl:value-of select="$investor"/>", "<xsl:value-of select="$invoice"/>", "<xsl:value-of select="$lease"/>", "<xsl:value-of select="$lender"/>", "<xsl:value-of select="$lessee"/>", "<xsl:value-of select="$misc"/>", "<xsl:value-of select="$notebook"/>", "<xsl:value-of select="$vendor"/>");
	</SCRIPT>

</xsl:template>



fn_popup*

fn_popup_r
fn_popup_l
fn_popup_r_twb
fn_popup_l_twb

Location: scripts_fn.xsl
Calls script(s): Yes

These four function templates take the passed parameters and call their corresponding scripts (LPPopupRight, LPPopupLeft, LPPopupRightTopWB, LPPopupLeftTopWB) to launch a popup window when the user positions the mouse pointer over the display image or text:

• fn_popup_r - launches the popup window to the right of the display image or text.
• fn_popup_l - launches the popup window to the left of the display image or text.
• fn_popup_r_twb - similar to fn_popup_r, except that it handles cases in which the display image or text is near the top of the Web page, where a normal popup window might be partially hidden.
• fn_popup_l_twb - similar to fn_popup_l, except that it handles cases in which the display image or text is near the top of the Web page, where a normal popup window might be partially hidden.

These functions work in conjunction with mouse-over and mouse-out events--that is, the popup window appears when the user positions the mouse pointer over the display image or text and disappears when the user moves the pointer off the display item. These functions already include the handling of the mouse-over and mouse-out events; using event attributes such as onmouseover and onmouseout within the tag from which you are calling a popup function will have unexpected and erroneous results.

Call these functions from any part of a template used to display text. In this example, calling fn_popup_l_twb from the lsesum_lessee.xsl template, the Web page displays the image rfw.gif within a table cell. When the user positions the mouse pointer over the rfw.gif image, a popup window with the title Red Flag Warning for Lessee and containing the text from les_rfw_note_s appears. When the user moves the pointer off the rfw.gif image, the popup window disappears:

<td colspan="4" class="dl_td" align="right">
	<!-- S T A R T -->
	<!-- Give the user the ability to display a popup window containing the RED FLAG WARNING -->
	<xsl:choose>
		<xsl:when test="les_rfw_note_s != ''">
			<xsl:call-template name="fn_popup_l_twb">
			<xsl:with-param name="class">dl_td_url</xsl:with-param>
			<xsl:with-param name="image">rfw.gif</xsl:with-param>
			<xsl:with-param name="image_align">right</xsl:with-param>
			<xsl:with-param name="popup_title">Red Flag Warning for Lessee</xsl:with-param>
			<xsl:with-param name="display_value"></xsl:with-param>
			<xsl:with-param name="inner_html">
				<xsl:text disable-output-escaping="yes"><![CDATA[<p><b>Message:</b> ]]></xsl:text>
				<xsl:value-of select='les_rfw_note_s'/>
				<xsl:text disable-output-escaping="yes"><![CDATA[</p>]]></xsl:text>
			</xsl:with-param>
			</xsl:call-template>
		</xsl:when>
		<xsl:otherwise>None</xsl:otherwise>
	</xsl:choose>
	<!-- F I N I S H -->
</td>

Parameters (same for all popup functions):

• display_value - the text you want to display where the user will position the mouse pointer to trigger the popup. You can use text with or without an accompanying image parameter. The value can be anything that resolves to text. Examples:
  • <xsl:param name="display_value"><xsl:value-of select='element_name' /></xsl:param>
  • <xsl:param name="display_value">$previously_defined_variable</xsl:param>
  • <xsl:param name="display_value">Static Text</xsl:param>
• image - the image you want to display where the user will position the mouse pointer to trigger the popup. You can use an image with or without an accompanying display_value parameter. Type the image file name without the path. By default, all of the popup functions look for images in install_path\Report Templates\images\misc.
• image_align - (optional) any valid align attribute value to apply to the image parameter. Recommended if you are using display_value and image together.
• class - any valid class attribute value to apply to the display_value and/or image parameters.
• url - (optional) the external URL (meaning outside of LeasePak) to apply to the display_value and/or image parameters.
• popup_title - (optional) the title to include in the popup window.
• inner_html - (optional) the text to include in the popup window. As shown in the example above from the lsesum_lessee.xsl template, use the combination of the XSL attribute disable-output-escaping="yes" with CDATA notation to provide formatting for the inner HTML.

The parameters display_value, image, image_align, class, and url all apply to the content and appearance of the display the user positions the mouse over to trigger the popup window. The parameters popup_title and inner_html apply to the content and appearance of the popup window itself.

Popup function templates from scripts_fn.xsl:

fn_popup_r

<!-- ============================================================================== -->
<!-- Function to make a POPUP window display to the right of the display text/image -->
<!-- ============================================================================== -->
<xsl:template name="fn_popup_r">
	<xsl:param name="display_value"></xsl:param>
	<xsl:param name="image"></xsl:param>
	<xsl:param name="image_align"></xsl:param>
	<xsl:param name="class"></xsl:param>
	<xsl:param name="url"></xsl:param>
	<xsl:param name="popup_title"></xsl:param>
	<xsl:param name="inner_html"></xsl:param>
	<SCRIPT LANGUAGE="JavaScript">
		LPPopupRight("<xsl:value-of select="$display_value"/>", "<xsl:value-of select="$class"/>", "<xsl:value-of select="$url"/>", "<xsl:value-of select="$image"/>", "<xsl:value-of select="$image_align"/>", "<xsl:value-of select="$popup_title"/>", "<xsl:value-of select="$inner_html"/>");
	</SCRIPT>
	</xsl:template>

fn_popup_l

<!-- ============================================================================= -->
<!-- Function to make a POPUP window display to the left of the display text/image -->
<!-- ============================================================================= -->
<xsl:template name="fn_popup_l">
	<xsl:param name="display_value"></xsl:param>
	<xsl:param name="image"></xsl:param>
	<xsl:param name="image_align"></xsl:param>
	<xsl:param name="class"></xsl:param>
	<xsl:param name="url"></xsl:param>
	<xsl:param name="popup_title"></xsl:param>
	<xsl:param name="inner_html"></xsl:param>
	<SCRIPT LANGUAGE="JavaScript">
		LPPopupLeft("<xsl:value-of select="$display_value"/>", "<xsl:value-of select="$class"/>", "<xsl:value-of select="$url"/>", "<xsl:value-of select="$image"/>", "<xsl:value-of select="$image_align"/>", "<xsl:value-of select="$popup_title"/>", "<xsl:value-of select="$inner_html"/>");
	</SCRIPT>
</xsl:template>

fn_popup_r_twb

<!-- ============================================================================== -->
<!-- Function to make a POPUP window display to the right of the display text/image -->
<!--     Used for items near the top of the web browser when the normal popup       -->
<!--     window is partially hidden.                                                -->
<!-- ============================================================================== -->
<xsl:template name="fn_popup_r_twb">
	<xsl:param name="display_value"></xsl:param>
	<xsl:param name="image"></xsl:param>
	<xsl:param name="image_align"></xsl:param>
	<xsl:param name="class"></xsl:param>
	<xsl:param name="url"></xsl:param>
	<xsl:param name="popup_title"></xsl:param>
	<xsl:param name="inner_html"></xsl:param>
	<SCRIPT LANGUAGE="JavaScript">
		LPPopupRightTopWB("<xsl:value-of select="$display_value"/>", "<xsl:value-of select="$class"/>", "<xsl:value-of select="$url"/>", "<xsl:value-of select="$image"/>", "<xsl:value-of select="$image_align"/>", "<xsl:value-of select="$popup_title"/>", "<xsl:value-of select="$inner_html"/>");
	</SCRIPT>
</xsl:template>

fn_popup_l_twb

<!-- ============================================================================= -->
<!-- Function to make a POPUP window display to the left of the display text/image -->
<!--     Used for items near the top of the web browser when the normal popup      -->
<!--     window is partially hidden.                                               -->
<!-- ============================================================================= -->
<xsl:template name="fn_popup_l_twb">
	<xsl:param name="display_value"></xsl:param>
	<xsl:param name="image"></xsl:param>
	<xsl:param name="image_align"></xsl:param>
	<xsl:param name="class"></xsl:param>
	<xsl:param name="url"></xsl:param>
	<xsl:param name="popup_title"></xsl:param>
	<xsl:param name="inner_html"></xsl:param>
	<SCRIPT LANGUAGE="JavaScript">
		LPPopupLeftTopWB("<xsl:value-of select="$display_value"/>", "<xsl:value-of select="$class"/>", "<xsl:value-of select="$url"/>", "<xsl:value-of select="$image"/>", "<xsl:value-of select="$image_align"/>", "<xsl:value-of select="$popup_title"/>", "<xsl:value-of select="$inner_html"/>");
	</SCRIPT>
</xsl:template>



fn_format_phone_num

Location: scripts_fn.xsl
Calls script(s): No

This function template takes a parameter of a 10-digit phone number and formats it as (nnn) nnn-nnnn. If the number passed to the function is not 10 digits, the function returns the number unchanged.

Call the function from any part of a template used to display text:

<p>
	<xsl:call-template name="fn_format_phone_num">
		<xsl:param name="phone">phone</xsl:param>
	</xsl:call-template>
</p>

Parameters:

• phone - a 10-digit phone number.

Function template from scripts_fn.xsl:

<!-- ===================================== -->
<!-- Function to format a phone number     -->
<!-- ===================================== -->
<xsl:template name="fn_format_phone_num">
	<xsl:param name="phone"></xsl:param>
	<xsl:choose>
		<xsl:when test="string-length($phone) = 10">
			(<xsl:value-of select="substring($phone,1,3)"/>) <xsl:value-of select="substring($phone,4,3)"/>-<xsl:value-of select="substring($phone,6,4)"/>
		</xsl:when>
		<xsl:otherwise>
			<xsl:value-of select="$phone"/>
		</xsl:otherwise>
	</xsl:choose>
</xsl:template>



fn_format_zip_code

Location: scripts_fn.xsl
Calls script(s): No

This function template takes a parameter of a 9-digit US zip code and formats it as nnnnn-nnnn. If the postal code passed to the function is not 9 digits, the function returns the postal code unchanged.

Call the function from any part of a template used to display text:

<p>
	<xsl:call-template name="fn_format_zip_code">
		<xsl:param name="zipcode">zipcode</xsl:param>
	</xsl:call-template>
</p>

Parameters:

• zipcode - a 9-digit US zip code.

Function template from scripts_fn.xsl:

<!-- ===================================== -->
<!-- Function to format a zip code         -->
<!-- ===================================== -->
<xsl:template name="fn_format_zip_code">
	<xsl:param name="zipcode"></xsl:param>
	<xsl:choose>
		<xsl:when test="string-length($zipcode) = 9">
			<xsl:value-of select="substring($zipcode,1,5)"/>-<xsl:value-of select="substring($zipcode,6,4)"/>
		</xsl:when>
		<xsl:otherwise>
			<xsl:value-of select="$zipcode"/>
		</xsl:otherwise>
	</xsl:choose>
</xsl:template>



fn_format_ssn_num

Location: scripts_fn.xsl
Calls script(s): No

This function template takes a parameter of a 9-digit Social Security Number (SSN) and formats it as nnn-nn-nnnn. If the number passed to the function is not 9 digits, the function returns the number unchanged.

Call the function from any part of a template used to display text:

<p>
	<xsl:call-template name="fn_format_ssn_num">
		<xsl:param name="ssn">ssn</xsl:param>
	</xsl:call-template>
</p>

Parameters:

• ssn - a 9-digit Social Security Number (SSN).

Function template from scripts_fn.xsl:

<!-- ===================================== -->
<!-- Function to format a SSN number       -->
<!-- ===================================== -->
<xsl:template name="fn_format_ssn_num">
	<xsl:param name="ssn"></xsl:param>
	<xsl:choose>
		<xsl:when test="string-length($ssn) = 9">
			<xsl:value-of select="substring($ssn,1,3)"/>-<xsl:value-of select="substring($ssn,4,2)"/>-<xsl:value-of select="substring($ssn,6,4)"/>
		</xsl:when>
		<xsl:otherwise>
			<xsl:value-of select="$ssn"/>
		</xsl:otherwise>
	</xsl:choose>
</xsl:template>



fn_format_amount

Location: scripts_fn.xsl
Calls script(s): No

This function template takes a parameter of a number in a standard US decimal format and converts it to a US currency format, placing negative amounts in parentheses.

The incoming number can use one or more commas for thousands separators. The incoming number must use a period for the decimal separator if the number includes a cents component--that is, $150.25 must be passed in as 150.25, not 15025.

Call the function from any part of a template used to display text:

<p>
	<xsl:call-template name="fn_format_amount">
		<xsl:param name="amount">amount</xsl:param>
	</xsl:call-template>
</p>

Parameters:

• amount - an amount in standard US decimal format.

Function template from scripts_fn.xsl:

<!-- ===================================== -->
<!-- Function to format an amount          -->
<!-- ===================================== -->
<xsl:template name="fn_format_amount">
	<xsl:param name="amount"></xsl:param>
	<xsl:value-of select="format-number(translate($amount, ',', ''),'$###,###,###,###,##0.00;($###,###,###,###,##0.00)')"/>
</xsl:template>



fn_format_date_yyyymmdd

Location: scripts_fn.xsl
Calls script(s): No

This function template takes a parameter of a date in MM/DD/YY format and transforms the date into a YYYYMMDD format, using the logic that 2-digit years < 50 are preceded by the century 20, while 2-digit years >= 50 are preceded by 19.

Call the function from any part of a template used to display text:

<p>
	<xsl:call-template name="fn_format_date_yyyymmdd">
		<xsl:param name="date">date</xsl:param>
	</xsl:call-template>
</p>

Parameters:

• date - a date in MM/DD/YY format.

Function template from scripts_fn.xsl:

<!-- ================================================================= -->
<!-- Function to format a date in MM/DD/YY format to a YYYYMMDD format -->
<!-- ================================================================= -->
<xsl:template name="fn_format_date_yyyymmdd">
	<xsl:param name="date"></xsl:param>
	<xsl:variable name="new_date">
		<xsl:value-of select="translate($date, '-', '/')"/>
	</xsl:variable>

	<!-- Year -->
	<xsl:variable name="year">
		<xsl:value-of select="substring-after(substring-after($new_date, '/'), '/')"/>
	</xsl:variable>
	<!-- Month -->
	<xsl:variable name="mon">
		<xsl:value-of select="format-number(number(substring-before($new_date, '/')), '00')"/>
	</xsl:variable>
	<!-- Day -->
	<xsl:variable name="day">
		<xsl:value-of select="format-number(number(substring-before(substring-after($new_date, '/'), '/')), '00')"/>
	</xsl:variable>

	<!-- Get the century based upon year -->
	<xsl:variable name="cent">
		<xsl:choose>
			<xsl:when test="$year < '50'">20</xsl:when>
			<xsl:otherwise>19</xsl:otherwise>
		</xsl:choose>
	</xsl:variable>

	<!-- Now build our date in the YYYYMMDD format -->
	<xsl:value-of select="$cent"/><xsl:value-of select="$year"/><xsl:value-of select="$mon"/><xsl:value-of select="$day"/>
</xsl:template>





Debugging Tools

LeasePak includes tools that allow you to view the Lease Summary HTML, XML, or XSL from within LeasePak and, in cases of XSL syntax errors, generates a message in place of the Lease Summary providing current conditions, as well as the standard Microsoft Internet Explorer XSL syntax error message.



LEASEPAK.INI

The default location of LEASEPAK.INI varies by Windows version:

• Windows 98 C:\My Documents\LeasePak\
• Windows NT C:\winnt\Profiles\user\Personal\LeasePak\
• Windows 2000 C:\Documents and Settings\user\My Documents\LeasePak\
• Windows XP C:\Documents and Settings\user\My Documents\LeasePak\

LeasePak client software at your site may be set up with user folders in a centralized (network) location or you may use shared folders for all or groups of users.

If needed, add the section [debug] to your LEASEPAK.INI file, located in the user's LeasePak client software user folder. To test Lease Summary transformations in debug mode, add the switch LseSumXMLDbg=1 to the [debug] section of the file.

Below is an example of a LEASEPAK.INI file with debugging activated:

[login]
DefaultUsername=ediel


[server]
TcpIpAddress=seville
Environment=ediedoc
Port=6000
Timeout=120

[mPower]
Auth=HEADER
Port=7606                  ;If port is not provided the system will use LP Port + 6 by default

[Miscellaneous]
ReferenceGuideLocation=



[window]
IsMaximized=1

[debug]
LseSumXMLDbg=1

To disable debugging without removing the switch, set LseSumXMLDbg=0.



Debug Mode

After setting the switch in your LEASEPAK.INI file, log on to the LeasePak client and access Lease Summary. At the top of the screen near the center you will see the following display options:

Select a lease and one of the display options, and then click Retrieve to see one of the following:

• HTML - the transformed page, combining the current XML data file and XSL style sheet.
• XML - the code view of the current XML data file.
• XSL - the code view of the current XSL style sheet.

In the HTML view, if you have links on the page that load separate style sheets or execute additional requests, select either the XML or XSL display option, then click the link to see the results in either the XML or XSL code view, respectively.



Error Messages

If you have syntactical errors in your XML or XSL or other error conditions exist, clicking Retrieve or a link on the page produces an error message in the Lease Summary screen:

NetSol Technologies HTTP Request Server - Version 6.0.1962
NetSol Technologies Winsock Object - Version 6.0.1962
=============================================================================================
UserName:=test1
Password:=*******
Environment:=test1
IP Address:=seville
Port:=6000
TimeOut:=120
Database (Name/Platform):=lpr_test1 / syb
Logicals:=none
=============================================================================================
Log file directory:=
HTML directory:=\\Eldorado\ediel\My Documents\LeasePak\v60a\reports\html\
XML directory:=\\Eldorado\ediel\My Documents\LeasePak\v60a\reports\xml\
XSL directory:=C:\Program Files\NetSol Technologies\LeasePak\v60a\Report Templates\
=============================================================================================
MSIHTTP Current function called: ProcessHTTPRequest()
	vService:=sql_qry
	vXSLFile:=LSESUM_SUMMARY
	vData:=<sp_name>lsesum</sp_name><param0>     12345</param0><param1>   12345</param1><param2>5</param2>

C:\Program Files\NetSol Technologies\LeasePak\v60a\Report Templates\lsesum_summary.xsl

End tag &apos;xsl:stylesheet&apos; does not match the start tag &apos;xsl:template&apos;.
 line: 723 col: 3 text: </xsl:stylesheet>      </table>

The first section of the message displays current login, environment, and LEASEPAK.INI information. The second section of the message displays the configured locations of transformed HTML page files, XML data files, and XSL style sheets. The next section specifies the type of function the user attempted to execute, including parameters and style sheet. The last section of the message displays the specific XML or XSL error (if any). In this case, an opening <xsl:template> tag without a matching closing tag in lsesum_summary.xsl caused the error.





LeasePak Documentation Suite

©  by NetSol Technologies Inc. All rights reserved.

The information contained in this document is the property of NetSol Technologies Inc. Use of the information contained herein is restricted. Conditions of use are subject to change without notice. NetSol Technologies Inc. assumes no liability for any inaccuracy that may appear in this document; the contents of this document do not constitute a promise or warranty. The software described in this document is furnished under license and may be used or copied only in accordance with the terms of said license. Unauthorized use, alteration, or reproduction of this document without the written consent of NetSol Technologies Inc. is prohibited.

Your document is loading...

This message should disappear within 5-15 seconds, depending on the size of the document and the speed of your connection to the Documentation Suite.

If you can still see this message after 20 seconds, try clicking the Refresh or Reload button on your Web browser.

If your document still does not load, refer to Document Load Troubleshooting for instructions on how to fix possible problems with either your Documentation Suite installation or Web browser setup.

If you do not have read access to the parent docsuite directory, you will not be able to load the Document Load Troubleshooting document. In this case, contact your network administrator for assistance.
