Asset Description [U0710]

Contents

• Add Manufacturer

• Change/Delete Manufacturer


• Add Model

• Change/Delete Model



Introduction

The Asset Description update [U0710] is used in conjunction with the New Lease update [U0101] and lease reporting; it is used to add, change, or delete codes for automobile or truck manufacturers and models.

Manufacturer and model codes, assigned to each automobile or truck in the Add Asset option of the New Lease update [U0101], must first be stored on the Asset Description (RVD) file. Manufacturer and model codes are entered for assets classified as vehicles (i.e., assets with a class code starting with V). Manufacturer and model codes are not entered for assets classified as equipment (i.e., class code starting with E).



Add Manufacturer

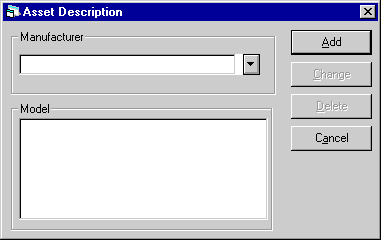

This window, with nothing selected, is used to add a new manufacturer.

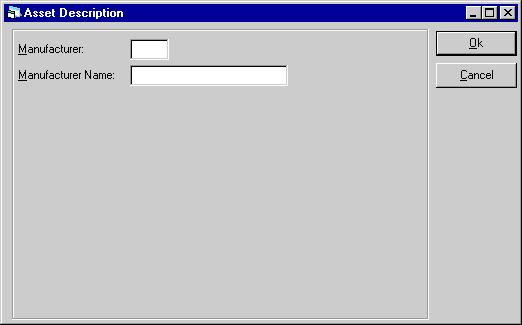

This window is used to add the new manufacturer code and name.

• MANUFACTURER
  This is a four-character code used to identify the manufacturer.


• MANUFACTURER NAME
  This is the descriptive name of the manufacturer.



Change/Delete Manufacturer

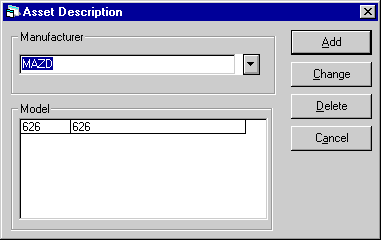

In order to change or delete the Manufacturer, the desired manufacturer code must be highlighted in the selection window.

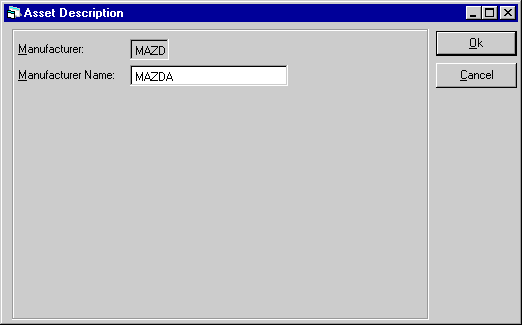

The current manufacturer code and name are displayed. Only the name of the manufacturer can be changed.



When deleting a manufacturer, the above message appears to confirm or cancel the deletion.

Note: deleting a manufacturer removes it and all of its associated models from the Asset Description (RVD) table.

If a manufacturer and/or model code is deleted for the purposes of re-adding with a different code, first check to see if any assets on file use the current code by generating the Asset Description Listing [R0916]. The manufacturer and/or model codes already on the Asset (REQ) file are not automatically changed to the new code. If a code is deleted, the Asset update [U0210] should be used to change assets with codes to be deleted to valid codes.



Add Model

Model codes and descriptions are attached to manufacturers. A manufacturer must be added then selected prior to adding any models associated with it.

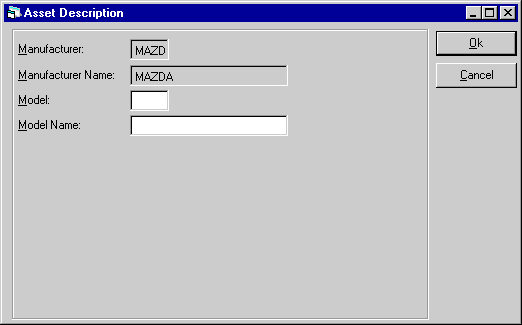

This window is used to add the model code and name.

• MANUFACTURER
  The code of the model's manufacturer is displayed and cannot be changed.


• MANUFACTURER NAME
  The name of the model's manufacturer is displayed and cannot be changed.


• MODEL
  This is the four-character code used to identify the model.


• MODEL NAME
  This is the descriptive name of the model.



Change/Delete Model

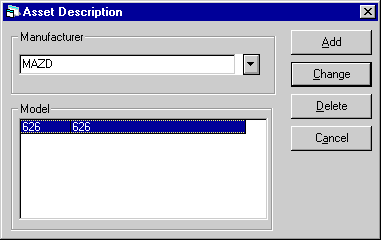

In order to change or delete the Model, the desired model code must be highlighted in the selection window.

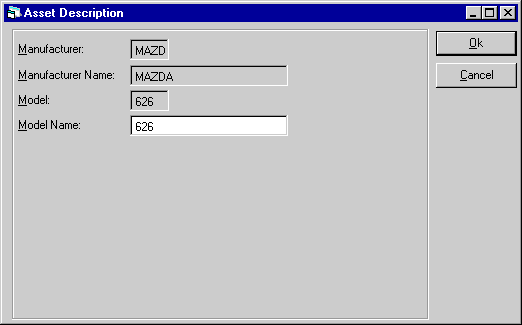

When changing a model, the current code and name are displayed. Only the name can be changed.

When deleting a model, the above message appears to confirm or cancel the deletion.

If a manufacturer and/or model code is deleted for the purposes of re-adding with a different code, first check to see if any assets on file use the current code by generating the Asset Description Listing [R0916]. The manufacturer and/or model codes already on the Asset (REQ) file are not automatically changed to the new code. If a code is deleted, the Asset update [U0210] should be used to change assets with codes to be deleted to valid codes.
